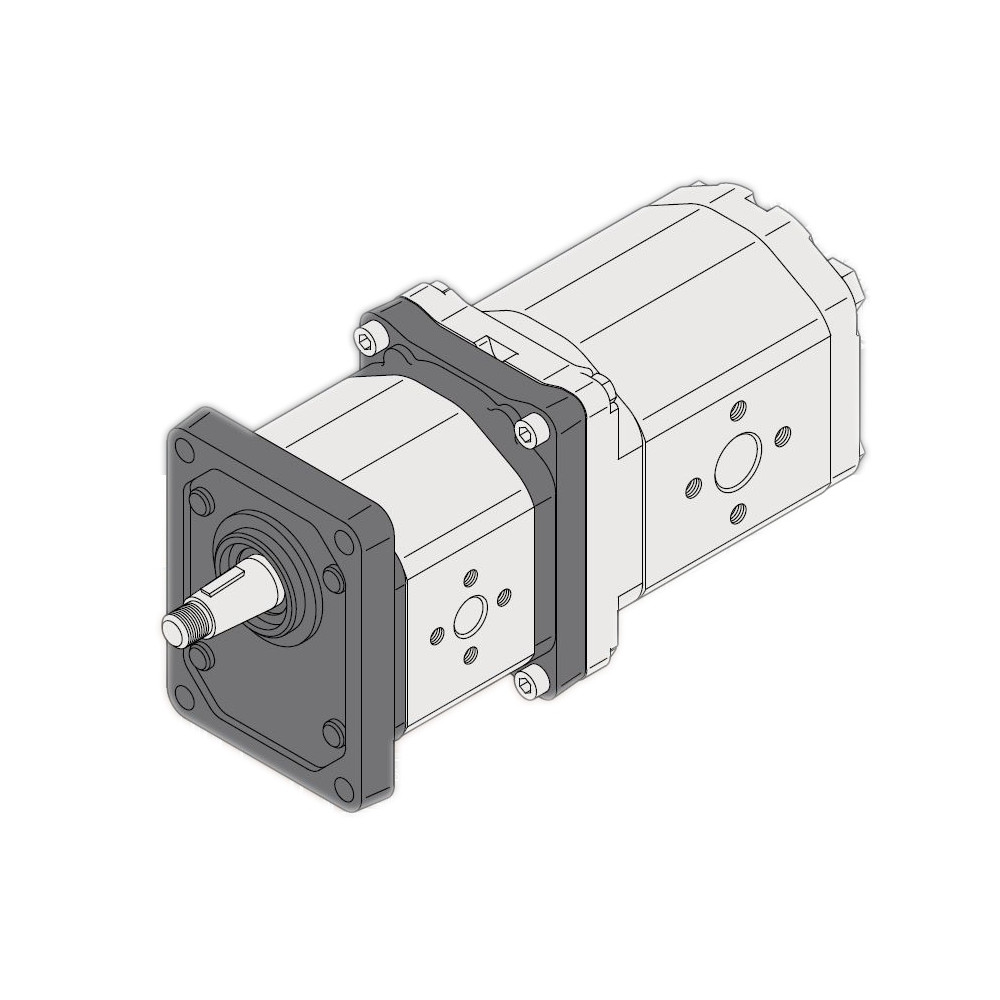

GHPA3-D-80 + GHPP3-D-40Tandem pump with external gearing MARZOCCHI
014
Geometric volume: 52 ccm / rev + 26 ccm / rev
Maximum pressure: 280 bar
Direction of rotation: clockwise
Maximum pressure: 280 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with external gearing GHPA 3 - D - 80 + GHPP 3 - D - 40.
014
Data sheet
- Mass
- 14.0 kg
- Designation
- GHPA 3 - D - 80 + GHPP3 - D - 40
- Shaft end
- Cone 1:8 / tongue 4 mm / terminated with M14x1.5 nut
- Installation center
- 50.8 mm
- Mounting bolt spacing
- 128x98.5 mm
- Maximum speed
- 2400.0 rpm
- Continuous working pressure
- 280.0 bar
- Peak pressure
- 310.0 bar
- Suction port - connection
- Flanges 56 mm
- Pressure port - connection
- Flanges 56 mm
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 52.0 cc/rev
- Geometric volume of the second degree
- 26.0 cc/rev
- Abbreviated name
- GHPA3-D-80+GHPP3-D-40
