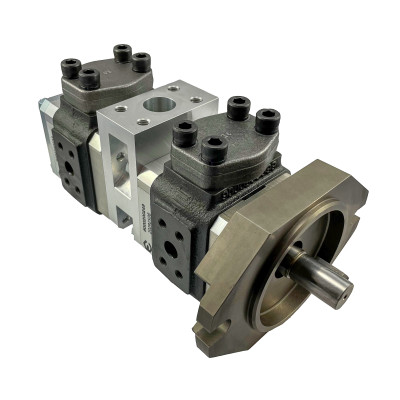

EIPH3-050RK20-1X + EIPH3-040RP30-1XTandem pump with internal gearing
010
Geometric volume: 50.3ccm / rev + 40.1 ccm / rev
Maximum pressure: 280 bar
Direction of rotation: clockwise
Maximum pressure: 280 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with internal gearing EIPH3-050 RK 20-1X + EIPH3-040 RP 30-1X.
010
Data sheet
- Mass
- 36.0 kg
- Designation
- EIPH3 - 050 RK 20 - 1X + EIPH3 - 040 RP 30 - 1X
- Shaft end
- Cylindrical - 25 mm / pen 8 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146 mm
- Maximum speed
- 1800.0 rpm
- Continuous working pressure
- 280.0 bar
- Peak pressure
- 300.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 50.3 cc/rev
- Geometric volume of the second degree
- 40.1 cc/rev
- Abbreviated name
- EIPH3-050 + EIPH3-040
New
Geometric volume: 50.3ccm / rev + 40.1 ccm / rev
Maximum pressure: 280 bar
Direction of rotation: clockwise
Maximum pressure: 280 bar
Direction of rotation: clockwise
