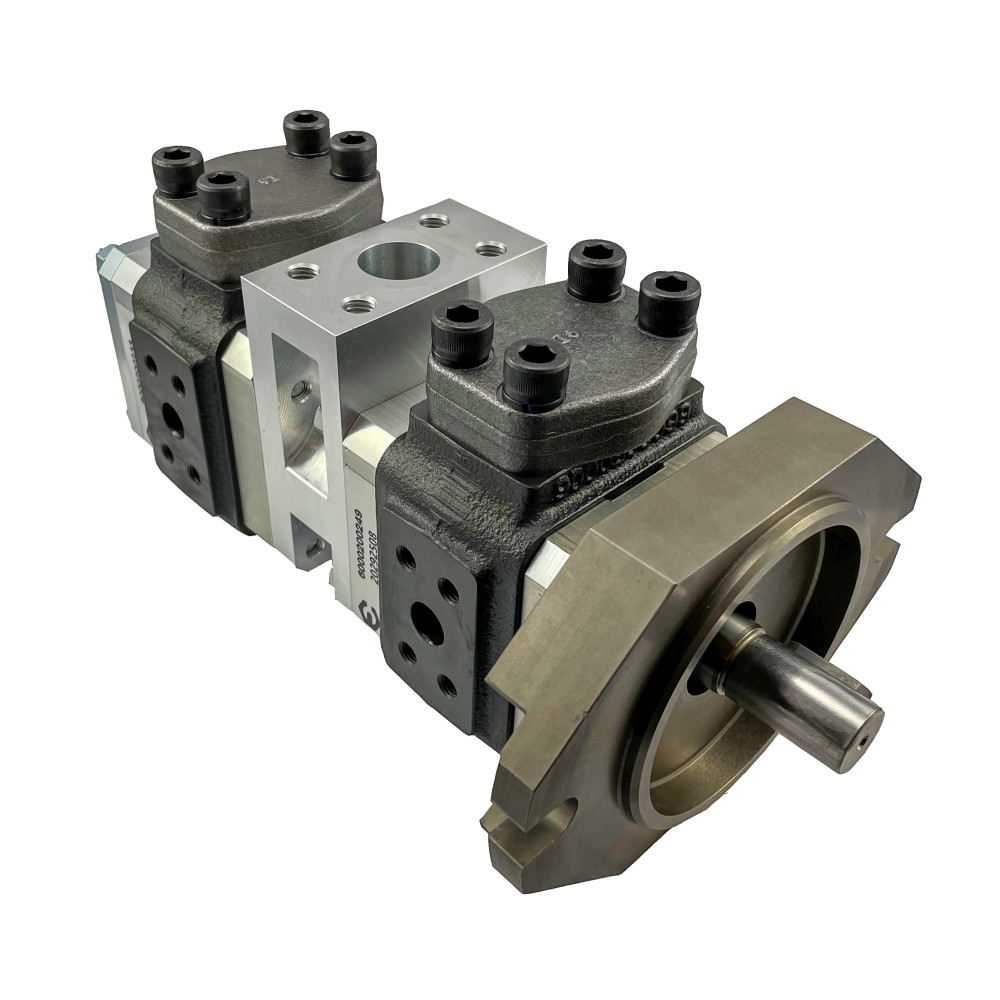

EIPH3-040RK20-1X + EIPH3-050RP30-1XTandem pump with internal gearing
009
Geometric volume: 40.1cc / rev + 50.3 cc / rev
Maximum pressure: 280 bar
Direction of rotation: clockwise
Maximum pressure: 280 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with internal gearing EIPH3-040 RK 20-1X + EIPH3-050 RP 30-1X.
009
Data sheet
- Mass
- 36.0 kg
- Designation
- EIPH3 - 040 RK 20 - 1X + EIPH3 - 050 RP 30 - 1X
- Shaft end
- Cylindrical - 25 mm / pen 8 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146 mm
- Maximum speed
- 1800.0 rpm
- Continuous working pressure
- 280.0 bar
- Peak pressure
- 300.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 39.5 cc/rev
- Geometric volume of the second degree
- 49.5 cc/rev
- Abbreviated name
- EIPH3-040 + EIPH3-050
New
Geometric volume: 40.1cc / rev + 50.3 cc / rev
Maximum pressure: 280 bar
Direction of rotation: clockwise
Maximum pressure: 280 bar
Direction of rotation: clockwise
