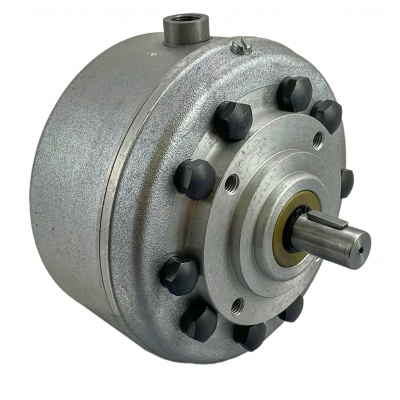

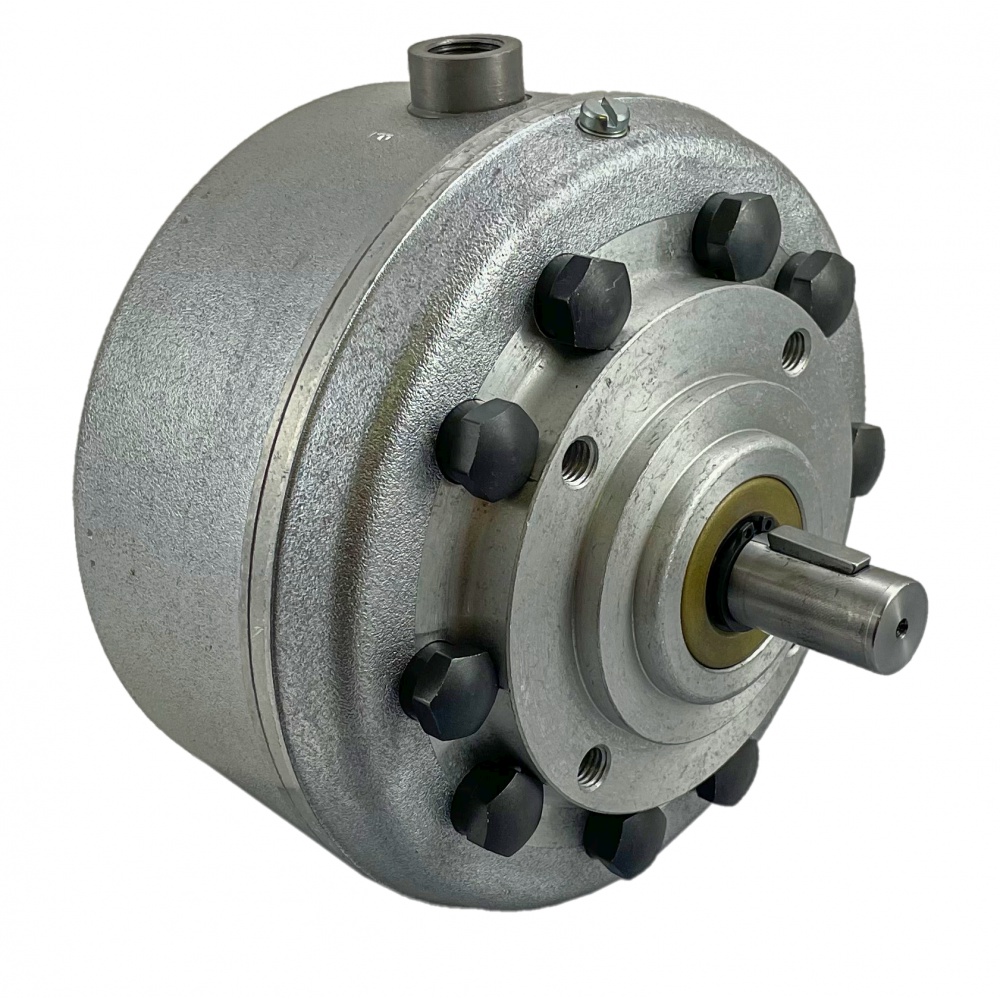

R 2.7-14.2 radial tandem piston pump HAWE, flow rate 2.15+10.09 ccm/U, pressure 700 bar

The pumping elements supply lubricating hydraulic fluids and at the same time create a counterpressure against the load resistance of the connected consumer. The radial piston pump type R and RG is universal and can be used not only as a motor pump outside the oil tank, but also for installation in the tank of a hydraulic unit (see D 6010 H). The pumps are generally used to supply hydraulic oil to hydraulic consumers in oil-hydraulic systems. Maximum installed power up to 30 kW, depending on size. The radial piston pump type RG has plain bearings that have a longer service life. This type is therefore used in extreme operating conditions. Extremely high flow rates can also be achieved by arranging up to 6 radials in parallel.

Features and benefits:

-Good function even at low viscosity

-High efficiency

-Compact dimensions

-Fine flow gradation

Application - use:

-In principle, any high-pressure application is possible
-Areas where constant flow is required
-Presses
-Test and laboratory equipment

-Lubrication systems

-Agricultural industry
R 2.7-14.2 HAWE
