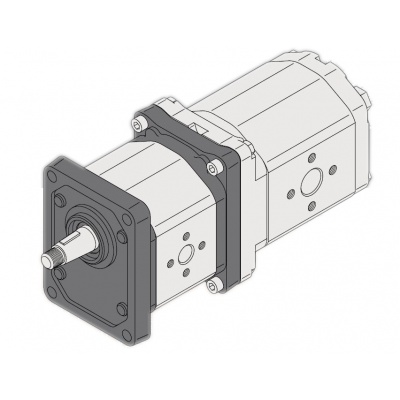

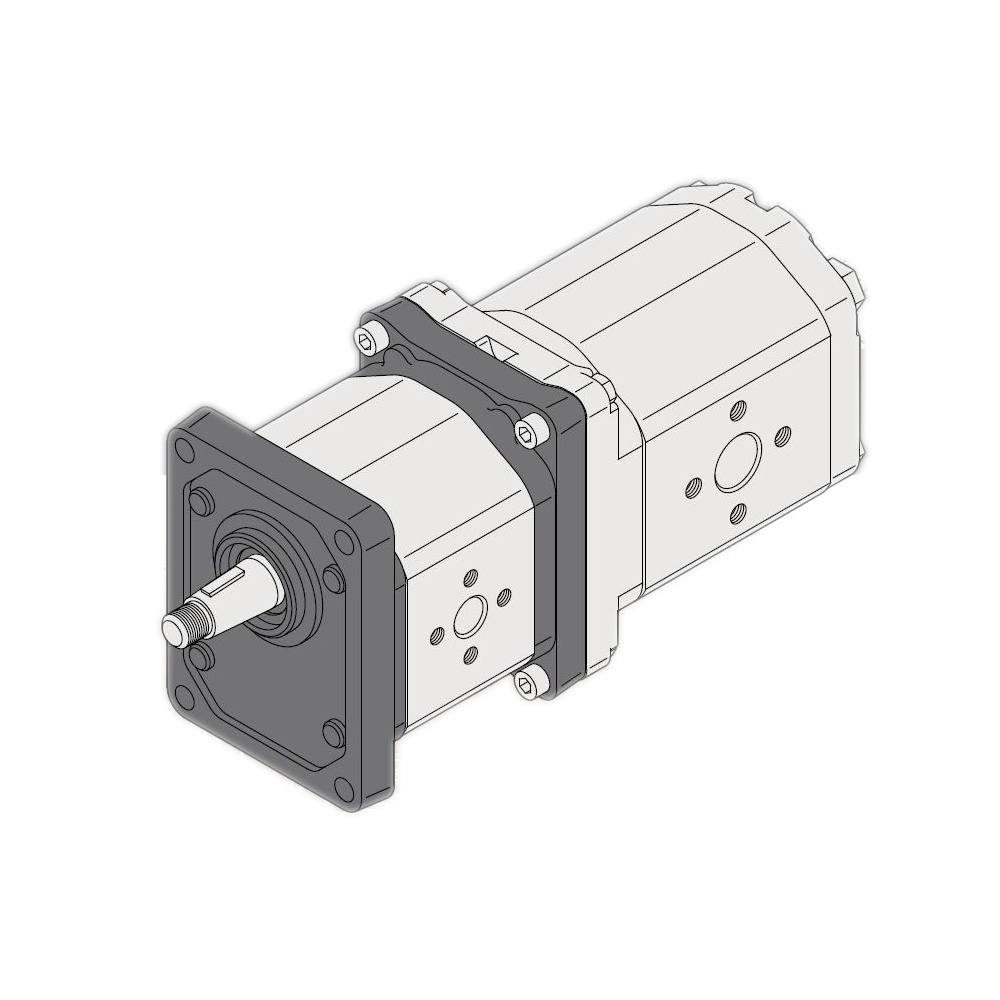

ALPA-2-D-25 + ALPP1-D-9 tandem pump MARZOCCHI, 17.9 + 6.2 ccm/rev, 230 bar
4693
Geometric volume: 17.9 + 6.2 cc/rev
Maximum pressure: 230 bar
Direction of rotation: clockwise
ALPA-2-D-25 + ALPP1-D-9
Maximum pressure: 230 bar
Direction of rotation: clockwise
ALPA-2-D-25 + ALPP1-D-9
Tandem pump, complete. MARZOCCHI
ALPA-2-D-25 + ALPP1-D-9
ALPA-2-D-25 + ALPP1-D-9
4693
Data sheet
- Designation
- ALPA-2-D-25 + ALPP1-D-9
- Shaft end
- Cone 1:8 / tongue 4 mm / terminated with M14x1.5 nut
- Installation center
- 35.2 mm
- Mounting bolt spacing
- 96x71.5 mm
- Maximum speed
- 3600.0 rpm
- Continuous working pressure
- 230.0 bar
- Peak pressure
- 245.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 17.9 cc/rev
- Geometric volume of the second degree
- 6.2 cc/rev
- Abbreviated name
- ALPA-2-D-25 + ALPP1-D-9
