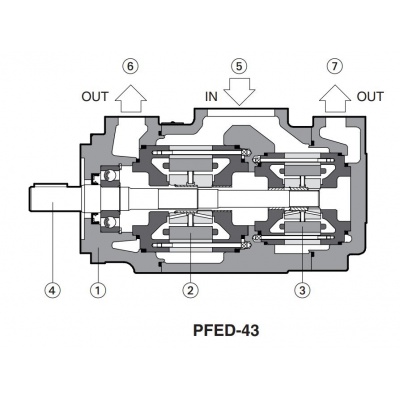

PFED-43056/044/1DUE 20 double vane pump ATOS, 55.8 + 43.7 ccm/rev, 210 bar

ATOS
4555
ATOS double pump
Geometric volume: 55.8 + 43.7 cc/rev
Maximum pressure: 210 bar
PFED-43056/044/1DUE 20
ATOS
47,341 Kč bez DPH
57,283 Kč Tax included
Quantity
On order 7-8 týdnů

Compare
ATOS hydraulic tandem vane pump.
PFED-43056/044/1DUE 20

Inquiry


Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Refresh the code

ATOS
4555

Data sheet

Mass
24.5 kg
Designation
PFED-43056/044/1DUE 20
Installation center
101.6 mm
Mounting bolt spacing
146 mm
Maximum speed
2500.0 rpm
Continuous working pressure
210.0 bar
Peak pressure
210.0 bar
Suction port - connection
58.8x89 mm
Pressure port - connection
47.6x22.2mm / 52.4x26.2mm
Geometric volume of the first degree
55.8 cc/rev
Geometric volume of the second degree
43.7 cc/rev
Abbreviated name
PFED-43056/044/1DUE 20
