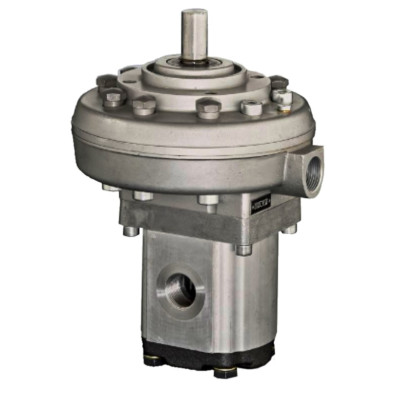

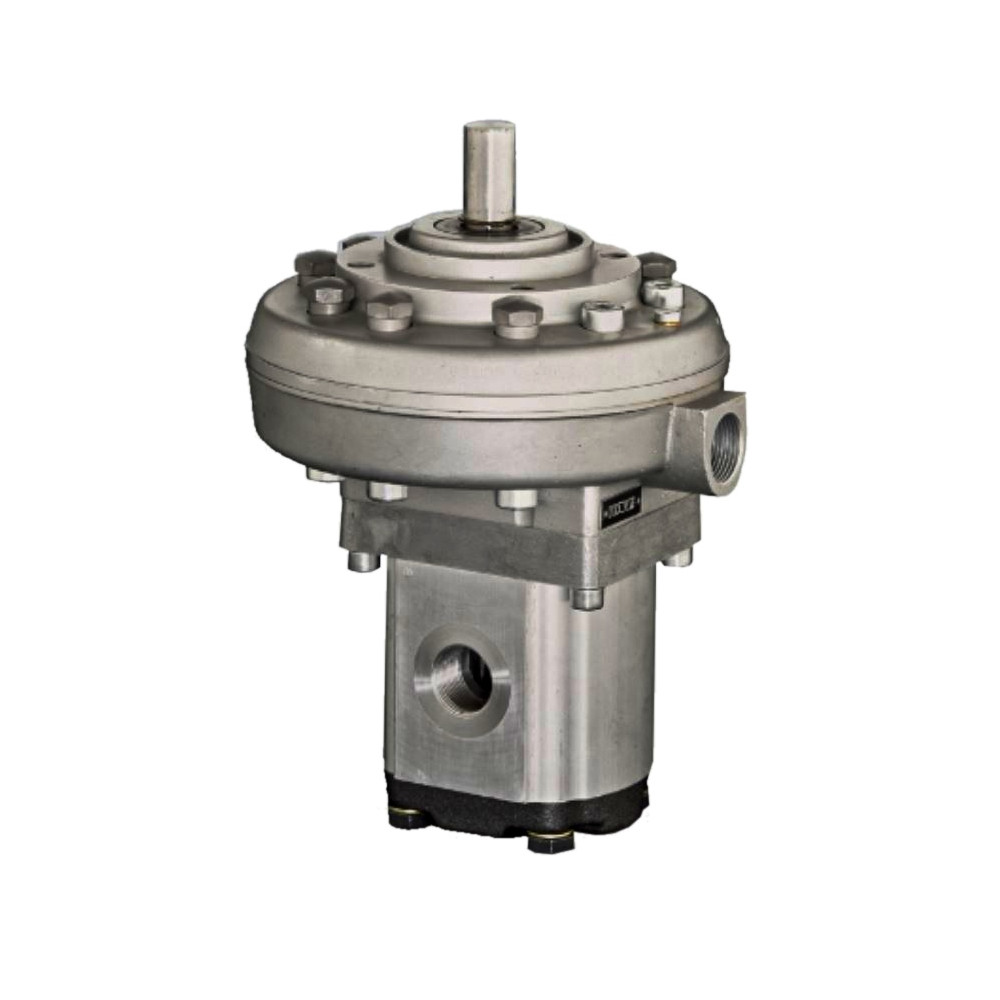

RZ 5.0/3-59 HAWE radial tandem piston pump in combination with gear pump

The pumping elements supply lubricating hydraulic fluids and at the same time create a back pressure acting against the load resistance of the connected appliance. The radial piston pump type R and RG is universal and can be used not only as a motor pump outside the oil tank, but also for installation in the tank of the hydraulic unit (see D 6010 H). Pumps are generally used to supply hydraulic oil to hydraulic consumers in oil-hydraulic systems. Maximum installed power up to 30 kW, depending on size. The RG type radial piston pump has plain bearings that have a longer service life. This type is therefore used in extreme operating conditions. Extremely high flow rates can also be achieved by parallel arrangement of up to 6 radials.

Features and benefits:

-Good function even at low viscosity

-High efficiency

-Compact dimensions

-Fine gradation of flow

Application - use:

-In principle, any high-pressure application is possible
-Areas where constant flow is required
- Presses
-Testing and laboratory equipment

- Lubrication systems

-Agricultural industry
RZ 5,0/3-59 HAWE
