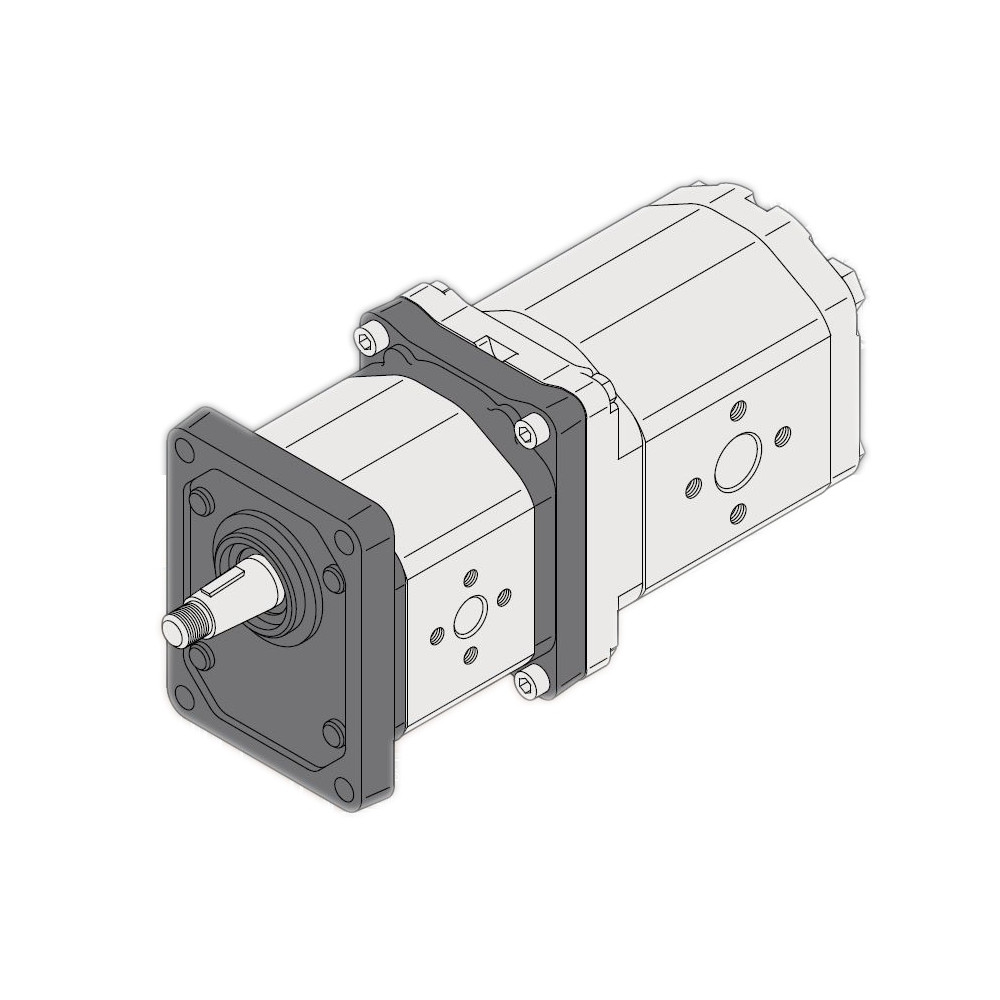

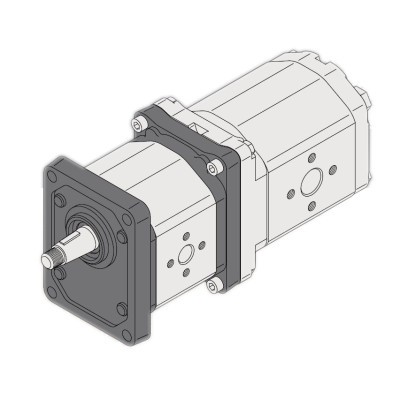

ALPA1-D-6+ALPP1-D-6 Tandem pump MARZOCCHI, 4.1 + 4.1 ccm/rev, 250 bar
3614
Geometric volume: 4.1 cc/rev + 4.1 cc/rev
Maximum pressure: 250 bar
Direction of rotation: clockwise
ALPA1-D-6+ALPP1-D-6
Maximum pressure: 250 bar
Direction of rotation: clockwise
ALPA1-D-6+ALPP1-D-6
Tandem or double pump consisting of two hydraulic pumps with external gears ALPA 1 - D - 6 + ALPP 1 - D - 6
3614
Data sheet
- Designation
- ALPA1-D-6+ALPP1-D-6
- Shaft end
- Cone 1: 8 / pen 3 mm / terminated with M10 nut
- Installation center
- 30.0 mm
- Mounting bolt spacing
- 73x56 mm
- Maximum speed
- 4000.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 270.0 bar
- Suction port - connection
- 4xM6 / O30
- Pressure port - connection
- 4xM6 / O30
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 4.1 cc/rev
- Geometric volume of the second degree
- 4.1 cc/rev
- Abbreviated name
- ALPA1-D-6+ALPP1-D-6
