EIPS2-019RK04-1X S111+EIPS2-005RD34-1X S111 ECKERLE tandem pump, 19.3+5.4 ccm/U
3568
Geometric volume: 19.3 cc/rev + 5.4 cc/rev
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-019RK04-1X S111+EIPS2-005RD34-1X S111
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-019RK04-1X S111+EIPS2-005RD34-1X S111

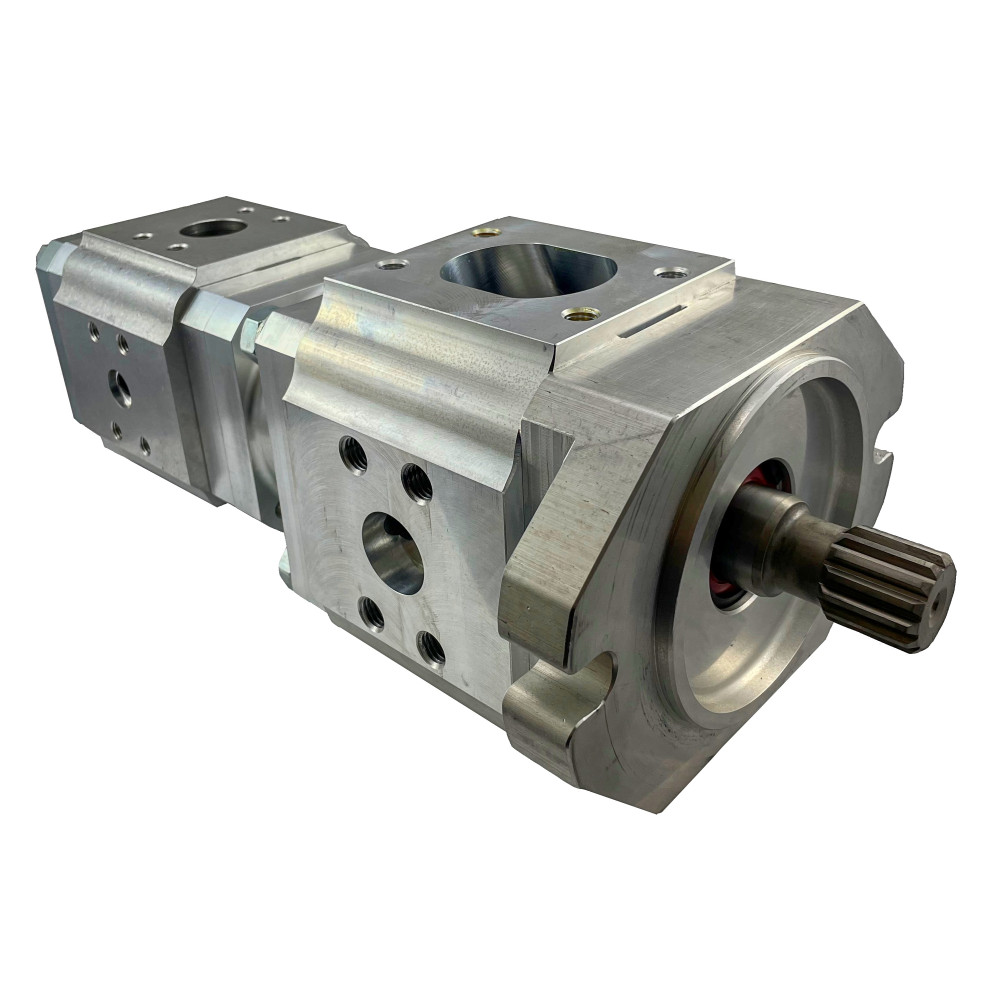

Tandem or double pump consisting of two hydraulic pumps with internal gears EIPS2 - 019 RK 04 - 1X S111 and EIPS2 - 005 RD 34 - 1X S111.
3568
Data sheet
- Mass
- 9.0 kg
- Designation
- EIPS2-019RK04-1X S111+
- Shaft end
- Cylindrical - 20 mm / pen 6 mm
- Installation center
- 127.0 mm
- Mounting bolt spacing
- 181 mm
- Maximum speed
- 3600.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 300.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 19.3 cc/rev
- Geometric volume of the second degree
- 5.4 cc/rev
- Abbreviated name
- EIPS2-019 + EIS2-005
