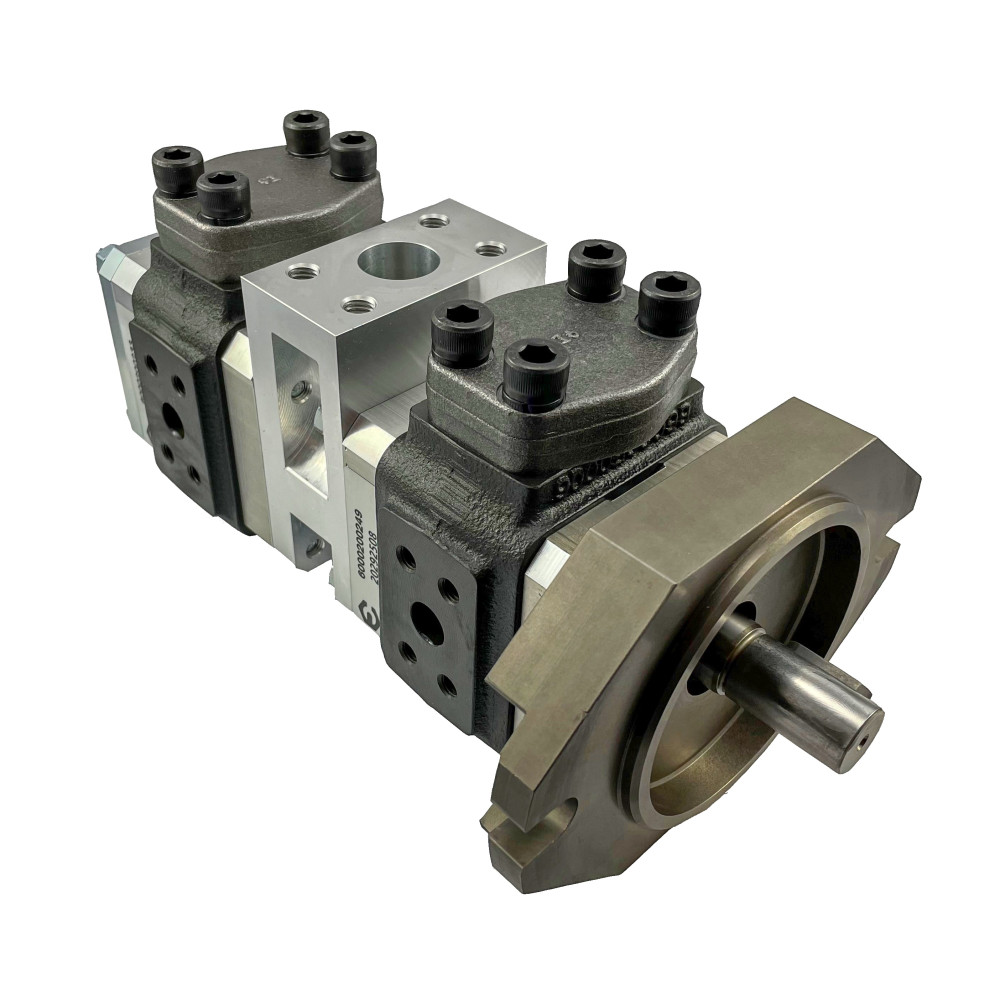

EIPH3-032RK20-1X + EIPH2-011RP30-1XTandem pump with internal gearing
004
Geometric volume: 31.6 ccm / rev + 10.8 ccm / rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
Maximum pressure: 330 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with internal gearing EIPH 3 - 032 RK 20 - 1X + EIPH 2 - 011 RP 30 - 1X.
004
Data sheet
- Mass
- 19.0 kg
- Designation
- EIPH 3 - 032 RK 20 - 1X + EIPH 2 - 011 RP 30 - 1X
- Shaft end
- Cylindrical - 25 mm / pen 8 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146 mm
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 330.0 bar
- Peak pressure
- 350.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 31.6 cc/rev
- Geometric volume of the second degree
- 10.8 cc/rev
- Abbreviated name
- EIPH3-032 + EIPH2-011
New
Geometric volume: 31.6 ccm / rev + 10.8 ccm / rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
Maximum pressure: 330 bar
Direction of rotation: clockwise
