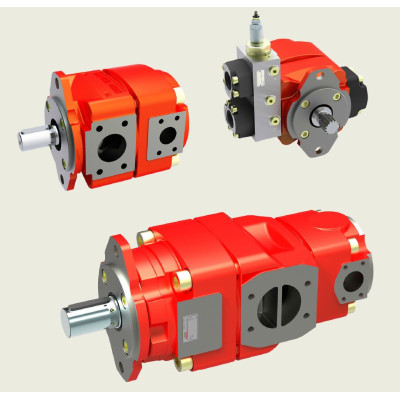

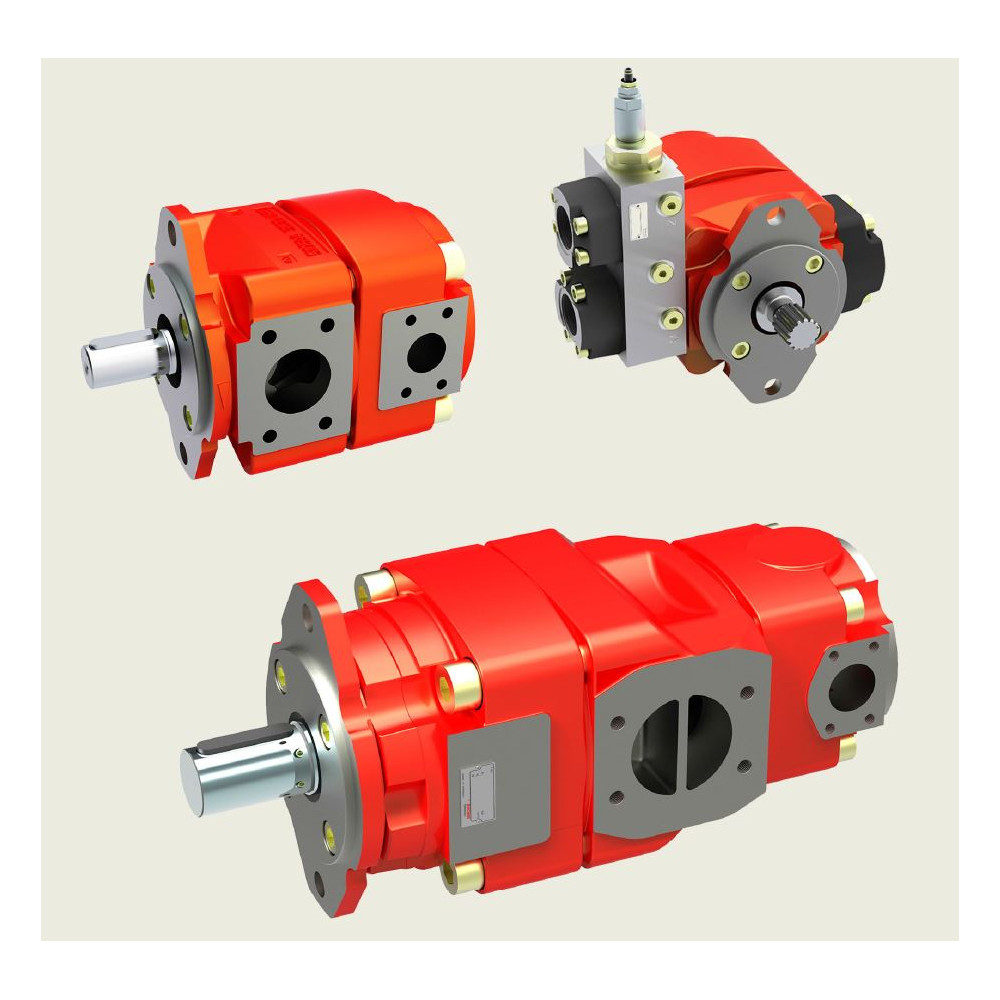

QX43-025/43-025R tandem pump BUCHER, 25.1 + 25.1 ccm/rev, 280 bar, clockwise
100026062
Geometric volume of the first stage: 25.1 cc/rev
Geometric displacement of the second stage: 25.1 cc/rev
Working pressure: 280 bar
Maximum pressure: 350 bar
Direction of rotation: clockwise
QX43-025/43-025R
Geometric displacement of the second stage: 25.1 cc/rev
Working pressure: 280 bar
Maximum pressure: 350 bar
Direction of rotation: clockwise
QX43-025/43-025R
Tandem oil pump, or BUCHER hydrogenerator with internal gears.
QX43-025/43-025R
QX43-025/43-025R
100026062
Data sheet
- Mass
- 50.0 kg
- Designation
- QX43-025/43-025R
- Shaft end
- Cylindrical - 32 mm / pen 10 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146 mm
- Maximum speed
- 3200.0 rpm
- Continuous working pressure
- 280.0 bar
- Peak pressure
- 350.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 25.1 cc/rev
- Geometric volume of the second degree
- 25.1 cc/rev
- Abbreviated name
- QX43-025/43-025R
New
Geometric volume of the first stage: 25.1 cc/rev
Geometric displacement of the second stage: 25.1 cc/rev
Working pressure: 280 bar
Maximum pressure: 350 bar
Direction of rotation: clockwise
QX43-025/43-025R
Geometric displacement of the second stage: 25.1 cc/rev
Working pressure: 280 bar
Maximum pressure: 350 bar
Direction of rotation: clockwise
QX43-025/43-025R
