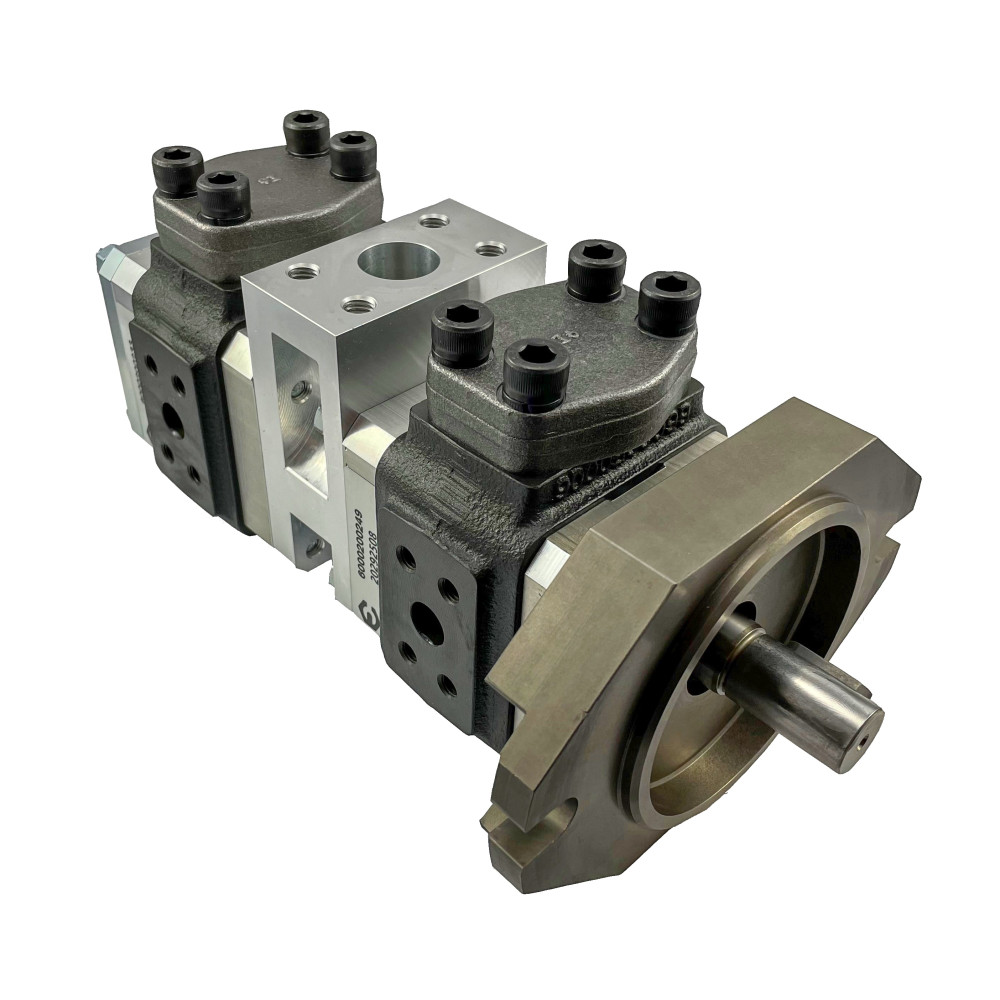

EIPH2-016RK20-1X + EIPH2-013RP30-1XTandem pump with internal gearing
002
Geometric volume: 15.8 ccm / rev + 13.3 ccm / rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
Maximum pressure: 330 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with internal gearing EIPH2-016 RK 20-1X and EIPH2-013 RP 30-1X.
002
Data sheet
- Mass
- 13.0 kg
- Designation
- EIPH2 - 016 RK 20 - 1X + EIPH2 - 013 RP 30 - 1X
- Shaft end
- Cylindrical - 20 mm / pen 6 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146 mm
- Maximum speed
- 4000.0 rpm
- Continuous working pressure
- 330.0 bar
- Peak pressure
- 350.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 15.8 cc/rev
- Geometric volume of the second degree
- 13.3 cc/rev
- Abbreviated name
- EIPH2-016 + EIPH2-013
New
Geometric volume: 15.8 ccm / rev + 13.3 ccm / rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
Maximum pressure: 330 bar
Direction of rotation: clockwise
