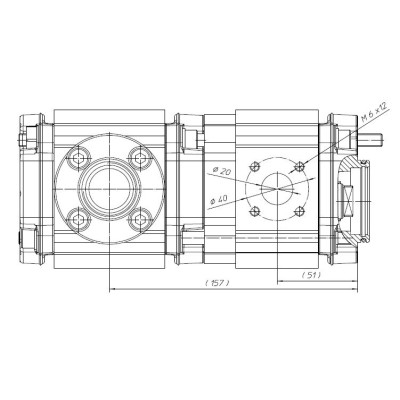

EIPS2-013RN34-1X+ EIPS2-022RD34-1X ECKERLE tandem pump, 13.3+21.8 ccm/U
6000200050
Geometric volume: 13.3 + 21.8 ccm/U
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-013RN34-1X+EIPS2-022RD34-1X
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-013RN34-1X+EIPS2-022RD34-1X
Tandem or double pump consisting of two ECKERLE hydraulic pumps with internal gears EIPS2 - 013 RN 34 - 1X + EIPS2 - 022 RD 34 - 1X
6000200050
Data sheet
- Mass
- 10.0 kg
- Designation
- EIPS2-013RN34/022RD34-1X
- Shaft end
- Nose 8 mm
- Installation center
- 52.0 mm
- Mounting bolt spacing
- 62 mm
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 300.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 13.3 cc/rev
- Geometric volume of the second degree
- 21.8 cc/rev
- Abbreviated name
- EIPS2-013RN34/022RD34-1X
