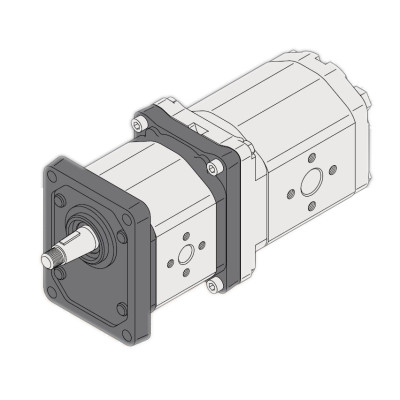

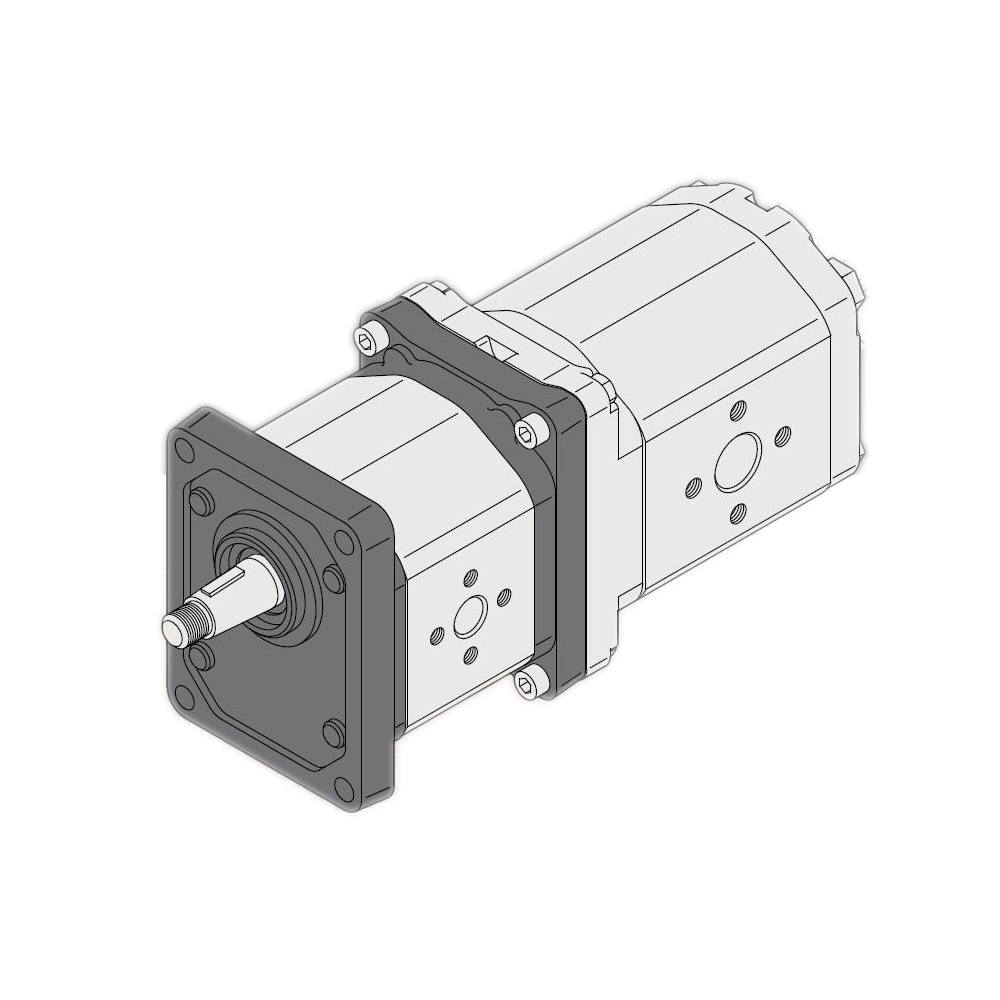

GHPA1-D-4+GHPP1-D-4Tandem hydrogenerator MARZOCCHI 2.8 ccm/rev+2.8 ccm/rev, right
3006
Geometric volume: 2.8 cc/rev + 2.8 cc/rev
Maximum pressure: 270 bar
Direction of rotation: clockwise
GHPA1-D-4+GHPP1-D-4
Maximum pressure: 270 bar
Direction of rotation: clockwise
GHPA1-D-4+GHPP1-D-4
Tandem or double pump consisting of two hydraulic pumps with external gears GHPA 1 - D - 4 + GHPP 1 - D - 4
3006
Data sheet
- Designation
- GHPA1-D-4+GHPP1-D-4
- Shaft end
- Cone 1: 8 / pen 4 mm / terminated with nut M12x1.5
- Installation center
- 36.5 mm
- Mounting bolt spacing
- 96x71.5 mm
- Maximum speed
- 5000.0 rpm
- Continuous working pressure
- 270.0 bar
- Peak pressure
- 290.0 bar
- Suction port - connection
- flanges 30 mm
- Pressure port - connection
- flanges 30 mm
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 2.8 cc/rev
- Geometric volume of the second degree
- 2.8 cc/rev
- Abbreviated name
- GHPA1-D-4+GHPP1-D-4
