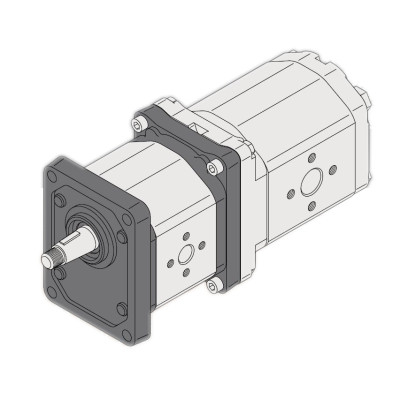

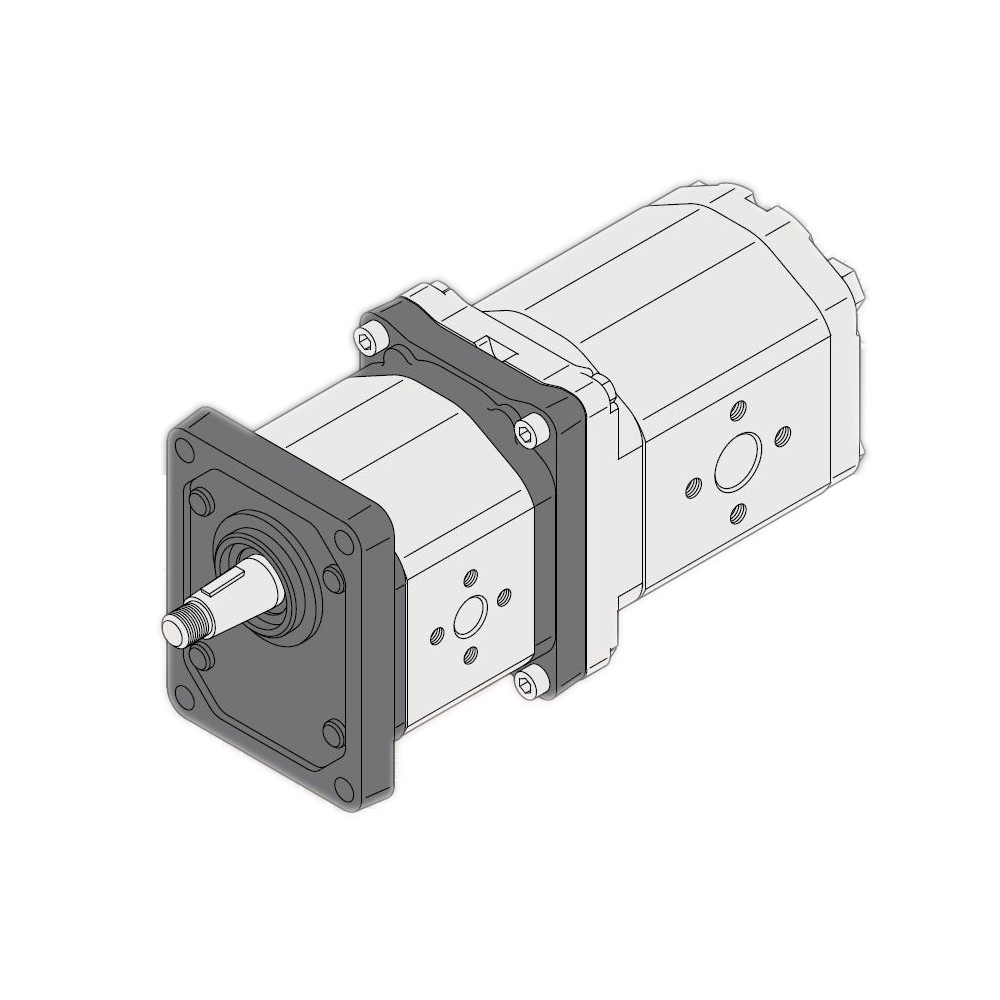

ALPA2-D-20+ALPP2-D-6 MARZOCCHI tandem hydrogenerator, 14.1 ccm/rev+4.5 ccm/rev, right
2895
Geometric volume: 14.1 cc/rev + 4.5 cc/rev
Maximum pressure: 250 bar
Direction of rotation: clockwise
ALPA2-D-20+ALPP2-D-6
Maximum pressure: 250 bar
Direction of rotation: clockwise
ALPA2-D-20+ALPP2-D-6
Tandem or double pump consisting of two hydraulic pumps with external gears ALPA2 - D - 20 + ALPP2 - D - 6
2895
Data sheet
- Designation
- ALPA2-D-20+ALPP2-D-6
- Shaft end
- Cone 1: 8 / pen 4 mm / terminated with nut M12x1.5
- Installation center
- 36.5 mm
- Mounting bolt spacing
- 96x71.5 mm
- Maximum speed
- 4000.0 rpm
- Continuous working pressure
- 0.0 bar
- Peak pressure
- 0.0 bar
- Suction port - connection
- Flanges 40 mm
- Pressure port - connection
- Flanges 40 mm
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 14.1 cc/rev
- Geometric volume of the second degree
- 4.5 cc/rev
- Abbreviated name
- ALPA2-D-20+ALPP2-D-6
