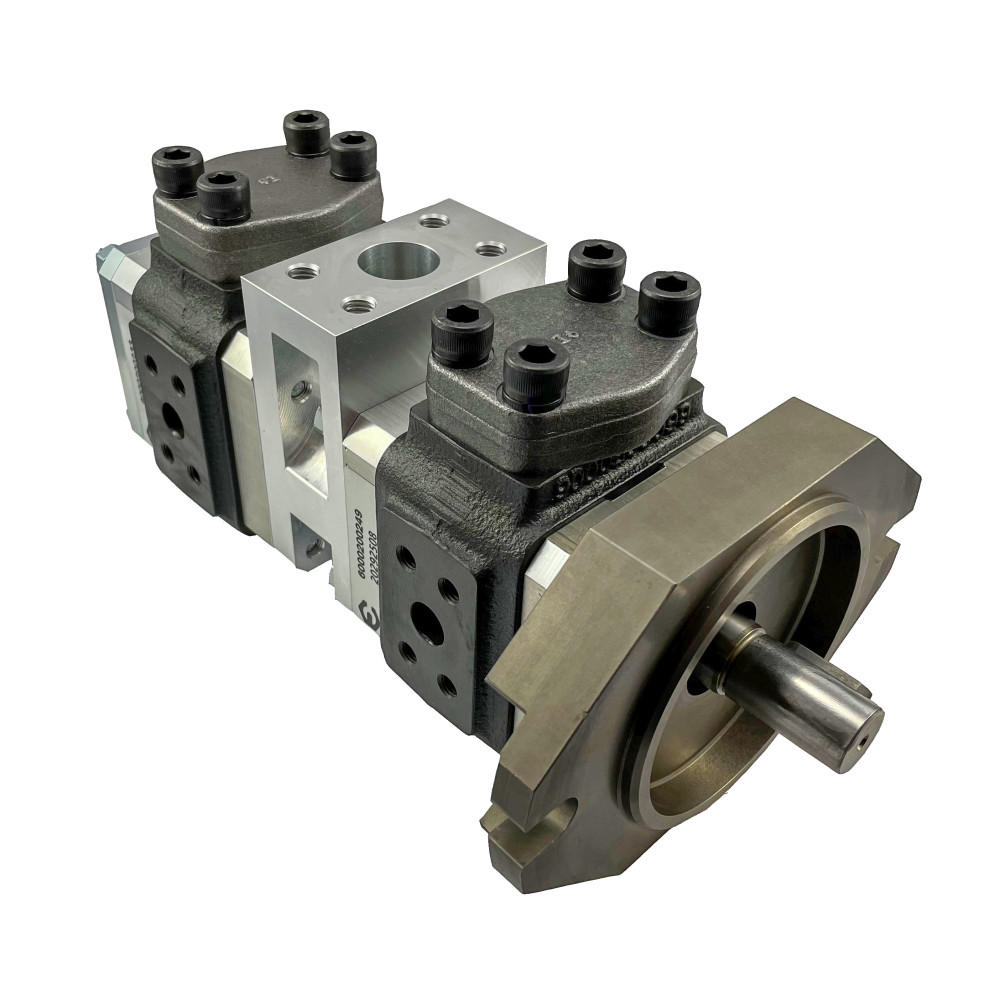

EIPH3-020RK20-1X+EIPH3-020RP30-1X double gear pump 20+20 ccm/U, 330 bar ECKERLE
2739
Geometric volume: 20 cc/rev + 20 cc/rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
EIPH3-020RK20-1X+EIPH3-020RP30-1X
Maximum pressure: 330 bar
Direction of rotation: clockwise
EIPH3-020RK20-1X+EIPH3-020RP30-1X
Tandem or double pump consisting of two hydraulic pumps with internal gears EIPH3 - 020 RK 00 - 1X and EIPH3 - 020 RP 30 - 1X.
2739
Data sheet
- Mass
- 23.0 kg
- Designation
- EIPH3-020RK20-1X+EIPH3-020RP30-1X
- Shaft end
- Cylindrical - 25 mm / pen 8 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146mm
- Maximum speed
- 3400.0 rpm
- Continuous working pressure
- 330.0 bar
- Peak pressure
- 350.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 20.0 cc/rev
- Geometric volume of the second degree
- 20.0 cc/rev
- Abbreviated name
- EIPH3-020 + EIPH3-020
