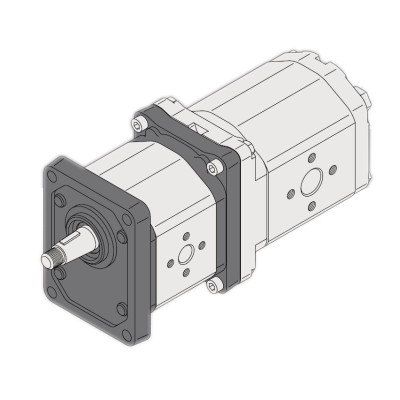

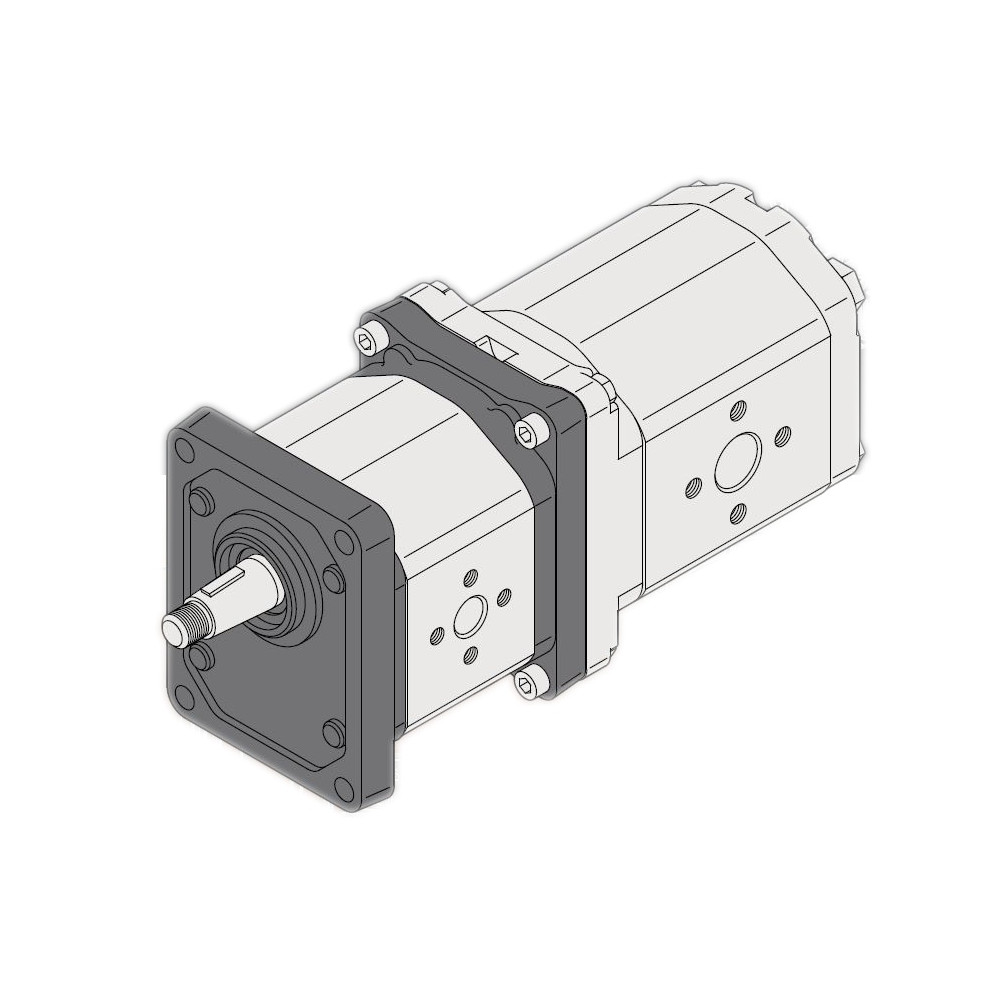

ALPA2-D-34+ALPP2-D-20 Tandem hydrogenerator MARZOCCHI, 23.7 + 14.1 ccm/rev, right
2590
Geometric volume: 23.7 cc/rev + 14.1 cc/rev
Maximum pressure: 230 bar
Direction of rotation: clockwise
ALPA2-D-34+ALPP2-D-20
Maximum pressure: 230 bar
Direction of rotation: clockwise
ALPA2-D-34+ALPP2-D-20
Tandem or double pump consisting of two hydraulic pumps with external gears ALPA2 - D - 34 + ALPP2 - D - 20
2590
Data sheet
- Mass
- 14.0 kg
- Designation
- ALPA2-D-34+ALPP2-D-20
- Shaft end
- Cone 1: 8 / pen 4 mm / terminated with nut M12x1.5
- Installation center
- 36.5 mm
- Mounting bolt spacing
- 96x71.5 mm
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 0.0 bar
- Peak pressure
- 0.0 bar
- Suction port - connection
- Flanges 40 mm
- Pressure port - connection
- Flanges 40 mm
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 23.7 cc/rev
- Geometric volume of the second degree
- 14.1 cc/rev
- Abbreviated name
- ALPA2-D-34+ALPP2-D-20
