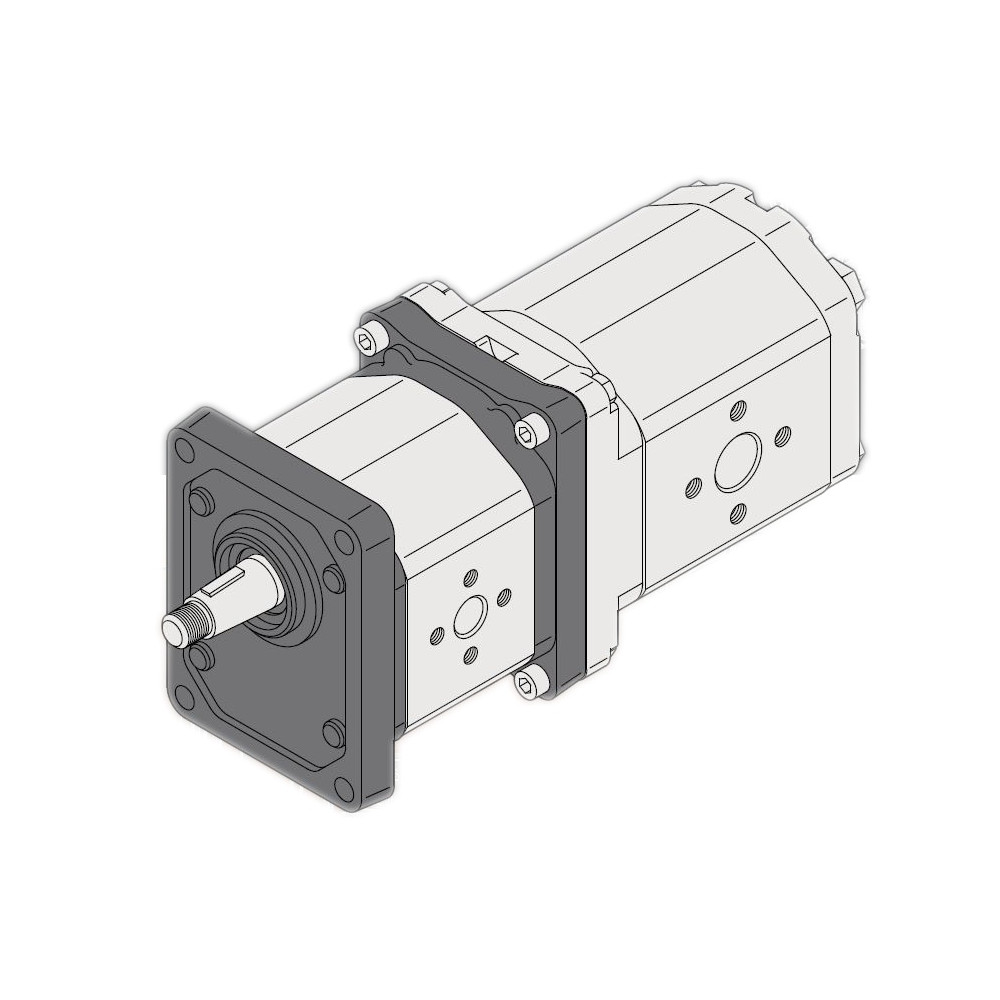

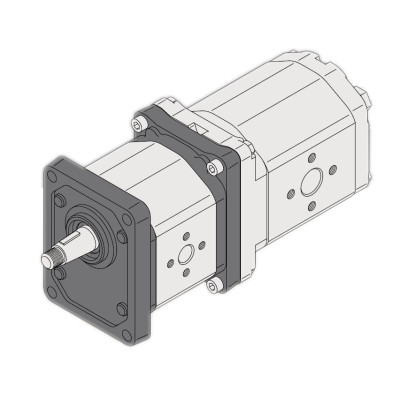

ALPA3-D-50-FG+GHPP3-D-40-FGTandem pump MARZOCCHI, 33 cc/rev + 26 cc/rev, right
2500
Geometric volume: 33 cc/rev + 26 cc/rev
Maximum pressure: 230/280 bar
Direction of rotation: clockwise
ALPA3-D-50-FG+GHPP3-D-40-FG
Maximum pressure: 230/280 bar
Direction of rotation: clockwise
ALPA3-D-50-FG+GHPP3-D-40-FG
Tandem or double pump consisting of two hydraulic pumps with external gears ALPA3 - D - 50 - FG + GHPP3 - D - 40 - FG
2500
Data sheet
- Mass
- 14.0 kg
- Designation
- ALPA3-D-50-FG+GHPP3-D-40-FG
- Shaft end
- Cone 1: 8 / pen 4 mm / terminated with nut M12x1.5
- Installation center
- 50.8 mm
- Mounting bolt spacing
- 128x98.5 mm
- Maximum speed
- 300.0 rpm
- Continuous working pressure
- 280.0 bar
- Peak pressure
- 298.0 bar
- Suction port - connection
- G1"
- Pressure port - connection
- G3/4"
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 33.0 cc/rev
- Geometric volume of the second degree
- 26.0 cc/rev
- Abbreviated name
- ALPA3-D-50+GHPP3-D-40 FG
