EIPS2-013RN34-1X S111+EIPS2-022RD34-1X S111 ECKERLE tandem pump, 13.3+21.8 ccm/U
2354
Geometric volume: 13.3 + 21.8 ccm/U
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-013RN34-1X S111+EIPS2-022RD34-1X S111
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-013RN34-1X S111+EIPS2-022RD34-1X S111

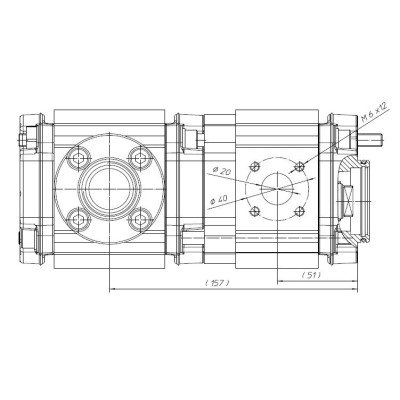

Tandem or double pump consisting of two ECKERLE hydraulic pumps with internal gears EIPS2 - 013 RN 34 - 1X S111 + EIPS2 - 022 RD 34 - 1X S111
2354
Data sheet
- Mass
- 10.0 kg
- Designation
- EIPS2-013RN34-1X S111+EIPS2-022RD34-1X S111
- Shaft end
- Nose 8 mm
- Installation center
- 52.0 mm
- Mounting bolt spacing
- 62 mm
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 300.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 13.3 cc/rev
- Geometric volume of the second degree
- 21.8 cc/rev
- Abbreviated name
- EIPS2-13 + EIPS2-22
New
Geometric volume: 13.3 + 21.8 ccm/U
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-013RN34-1X S111+EIPS2-022RD34-1X S111
Maximum pressure: 250 bar
Direction of rotation: clockwise
EIPS2-013RN34-1X S111+EIPS2-022RD34-1X S111
