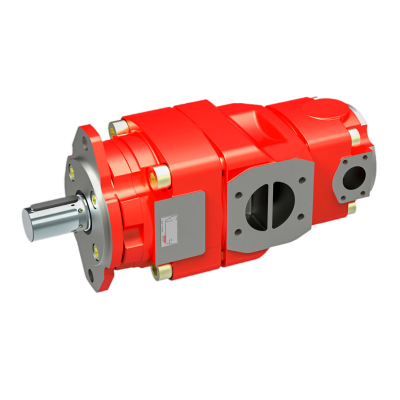

QX82-160/62-100R140 Double - Tandem BUCHER Internal Gear Pump
100039318
Geometric volume: 161.9 cc/rev + 100.5 cc/rev
Working pressure 1 stage: 210 bar
Working pressure 2 stage: 210 bar
Direction of rotation: clockwise
QX82-160/62-100R140
Bucher
Working pressure 1 stage: 210 bar
Working pressure 2 stage: 210 bar
Direction of rotation: clockwise
QX82-160/62-100R140
Bucher
Tandem or double pump consisting of two hydraulic pumps with internal gears QX82-160/62-100R140 BUCHER
100039318
Data sheet
- Mass
- 180.0 kg
- Designation
- QX82-160/62-100R140
- Shaft end
- Cylindrical - 63 mm / pen 18 mm
- Installation center
- 200.0 mm
- Mounting bolt spacing
- 280 mm
- Maximum speed
- 1800.0 rpm
- Continuous working pressure
- 210.0 bar
- Peak pressure
- 250.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 161.9 cc/rev
- Geometric volume of the second degree
- 100.5 cc/rev
- Abbreviated name
- QX82-160/62-100R140
New
Geometric volume: 161.9 cc/rev + 100.5 cc/rev
Working pressure 1 stage: 210 bar
Working pressure 2 stage: 210 bar
Direction of rotation: clockwise
QX82-160/62-100R140
Bucher
Working pressure 1 stage: 210 bar
Working pressure 2 stage: 210 bar
Direction of rotation: clockwise
QX82-160/62-100R140
Bucher
