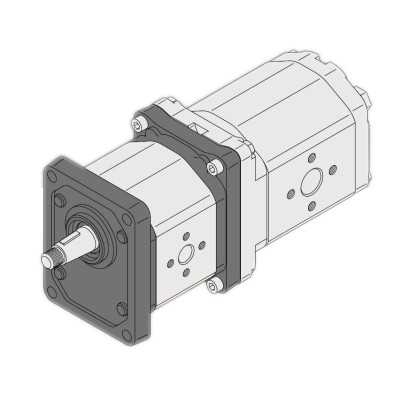

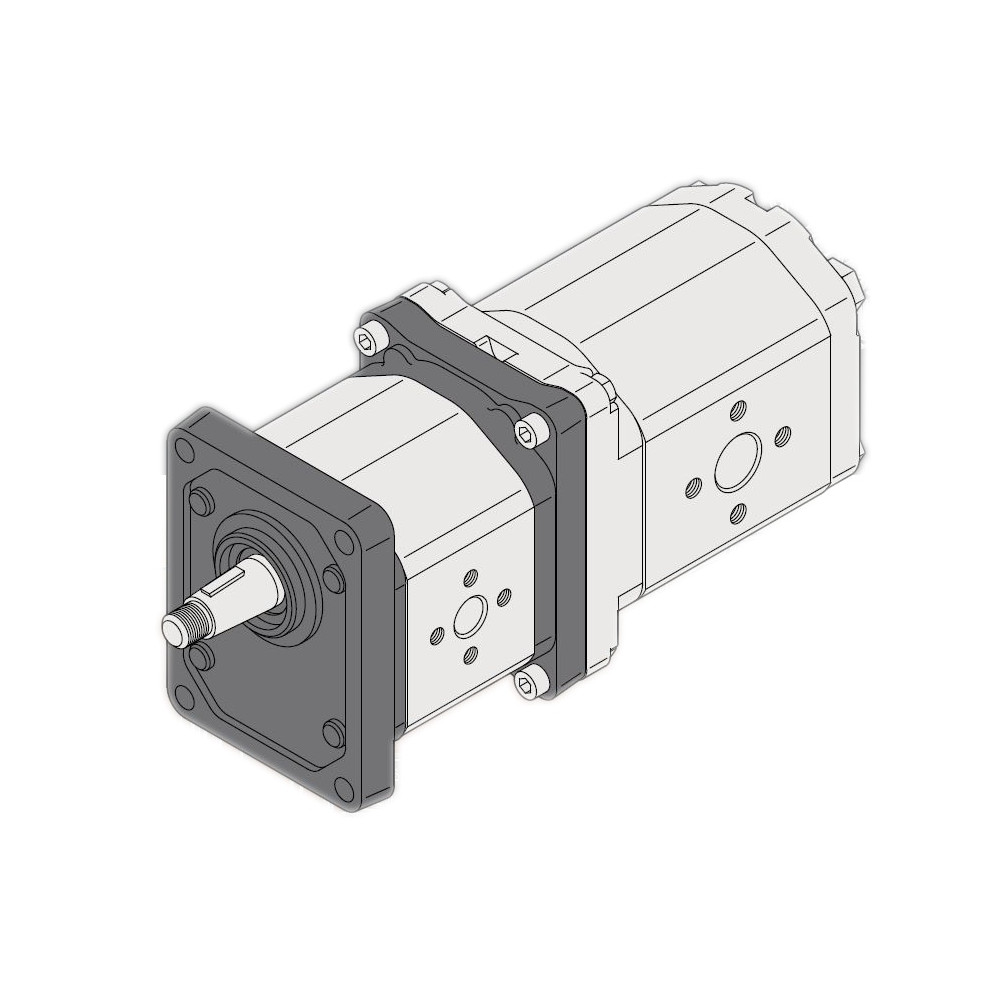

ALPA2-D-13+ALPP3-D-60 MARZOCCHI tandem pump, 9.6 ccm/rev + 39 ccm/rev
1895
Geometric volume: 9.6 cc/rev + 39 cc/rev
Maximum pressure: 220 bar
Direction of rotation: clockwise
ALPA2-D-13+ALPP3-D-60
Maximum pressure: 220 bar
Direction of rotation: clockwise
ALPA2-D-13+ALPP3-D-60
Tandem or double pump consisting of two hydraulic pumps with external gears ALPA 2 - D - 13 + ALPP 3 - D - 60
1895
Data sheet
- Mass
- 14.0 kg
- Designation
- ALPA2-D-13+ALPP3-D-60
- Shaft end
- Cone 1: 8 / pen 4 mm / terminated with nut M12x1.5
- Installation center
- 36.5 mm
- Mounting bolt spacing
- 96x71.5 mm
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 220.0 bar
- Peak pressure
- 250.0 bar
- Suction port - connection
- Flanges 56 mm
- Pressure port - connection
- Flanges 40 mm
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 9.6 cc/rev
- Geometric volume of the second degree
- 39.0 cc/rev
- Abbreviated name
- ALPA2-D-13+ALPP3-D-60
New
Geometric volume: 9.6 cc/rev + 39 cc/rev
Maximum pressure: 220 bar
Direction of rotation: clockwise
ALPA2-D-13+ALPP3-D-60
Maximum pressure: 220 bar
Direction of rotation: clockwise
ALPA2-D-13+ALPP3-D-60
