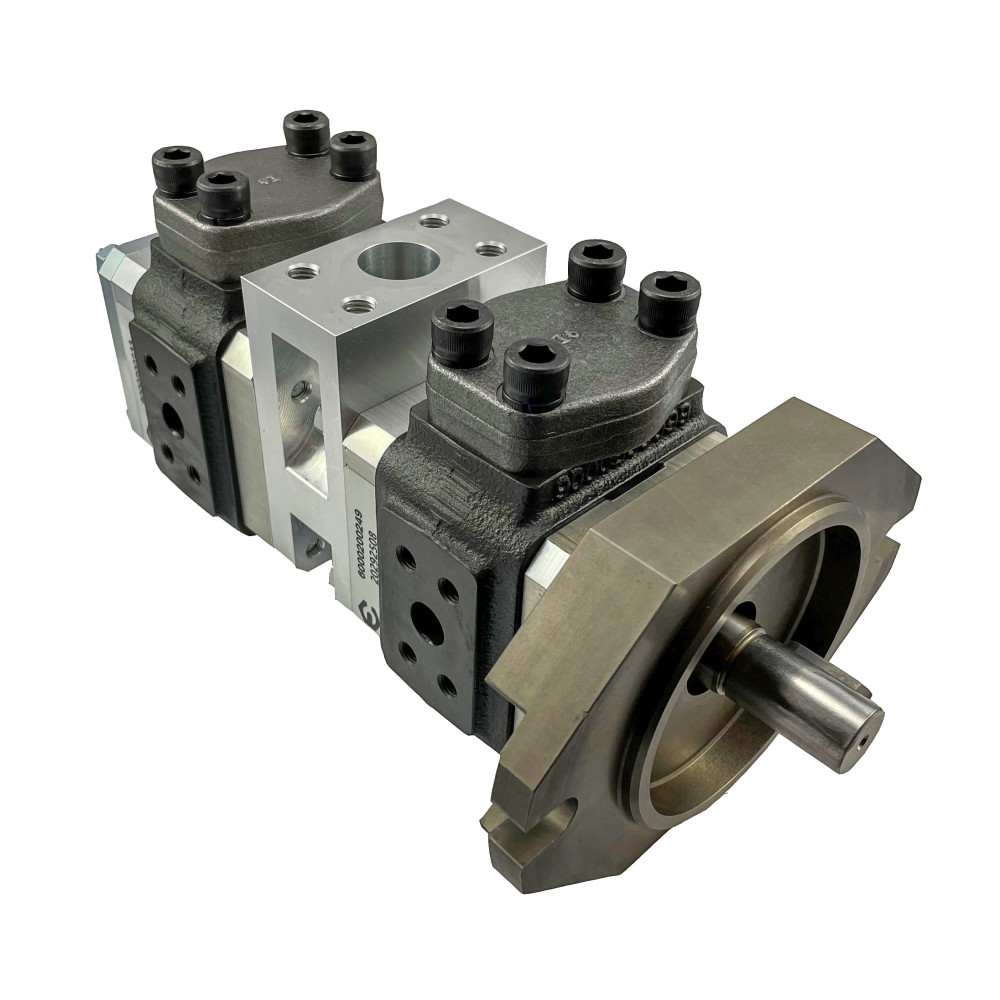

EIPH3-016RK20-1X + EIPH3-032RP30-1XDouble hydraulic pump with internal gearing
1147
Geometric volume: 16 ccm / rev + 32.1 ccm / rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
Maximum pressure: 330 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with internal gearing EIPH 3 - 016 RK 20 - 1X + EIPH 3 - 030 RP 30 - 1X.
1147
Data sheet
- Mass
- 25.0 kg
- Designation
- EIPH 3 - 016 RK 20 - 1X + EIPH 3 - 032 RP 30 - 1X
- Shaft end
- Cylindrical - 25 mm / pen 8 mm
- Installation center
- 101.6 mm
- Mounting bolt spacing
- 146 mm
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 330.0 bar
- Peak pressure
- 400.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 16.0 ccm / ot
- Geometric volume of the second degree
- 32.1 cc / rev
- Abbreviated name
- EIPH3-016 + EIPH3-032
New
Geometric volume: 16 ccm / rev + 32.1 ccm / rev
Maximum pressure: 330 bar
Direction of rotation: clockwise
Maximum pressure: 330 bar
Direction of rotation: clockwise
