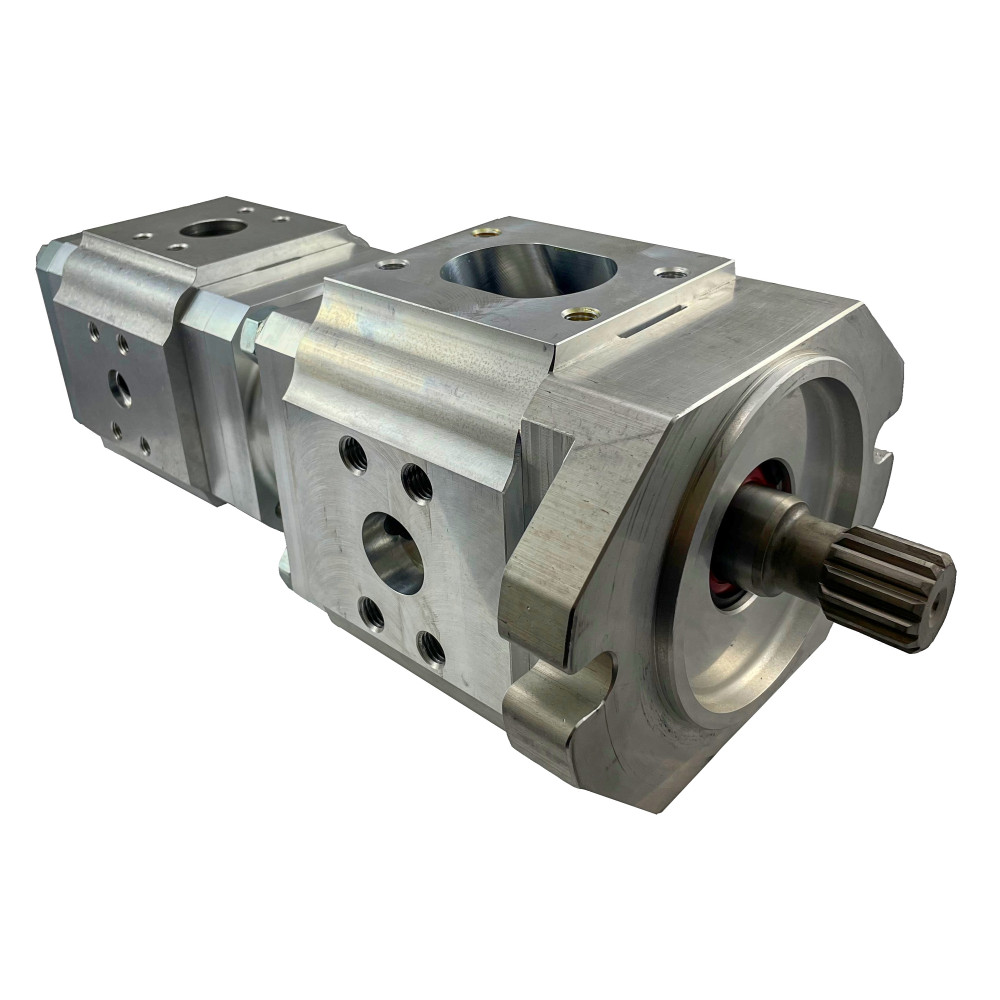

EIPS2-025RK04-12 S111 + EIPS2-025RD34-12 S111Tandem pump with internal gearing
1099
Geometric volume: 25.2 ccm / rev + 25.2 ccm / rev
Maximum pressure: 250 bar
Direction of rotation: clockwise
Maximum pressure: 250 bar
Direction of rotation: clockwise
Tandem or double pump consisting of two hydraulic pumps with internal gearing EIPS2 - 025 RK 04 - 12 S111 and EIPS2 - 025 RD 34 - 12 S111.
1099
Data sheet
- Mass
- 10.0 kg
- Designation
- EIPS2 - 025 RK 04 - 12 S111 + EIPS2 - 025 RD 34 - 12 S1
- Shaft end
- Cylindrical - 20 mm / pen 6 mm
- Installation center
- 127.0 mm
- Mounting bolt spacing
- 181 mm
- Maximum speed
- 3600.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 300.0 bar
- Direction of rotation
- Right-handed
- Geometric volume of the first degree
- 25.5 cc/rev
- Geometric volume of the second degree
- 25.2 cc/rev
- Abbreviated name
- EIPS2-025 + EIS2-025
New
Geometric volume: 25.2 ccm / rev + 25.2 ccm / rev
Maximum pressure: 250 bar
Direction of rotation: clockwise
Maximum pressure: 250 bar
Direction of rotation: clockwise
