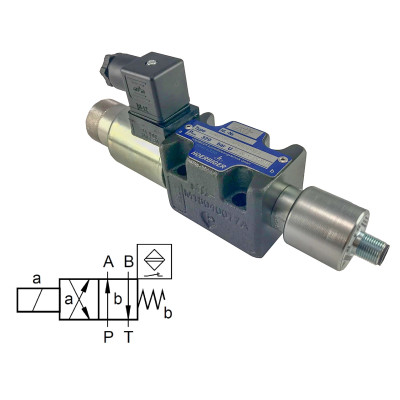

SAM220PC10PG SO973 (A1) HAWE valve with position sensing, 350 bar, 100 l/min, 24 VDC

The HOERBIGER - HAWE gate valve : SAM 220 PC 10 PGSO 973 A1 is equipped with a special feedback function for the gate valve position control unit. Gate valves type SAM220PC10PG SO973 (A1) are single coil 4/2 valves, where there is a control coil on one side and an induction sensor on the other side, which after moving the gate valve sends a signal to the control system that the gate valve has really been moved. This is a so-called safety element. These hydraulic valves are most often found in TRUMPF and AMADA press brakes for opening suction flaps at high speed.
