VCM361P07P SO414 C2 - Hydraulic switchboard for press brakes TRUMPF - HOERBIGER - HAWE

HV01892
Voltage: 24 V DC - Flow: 80 l / min - Maximum pressure: 350 bar
17,659 Kč bez DPH
21,368 Kč Tax included

20,765 Kč ks

Quantity
Last items in stock 4-5 týdnů

Compare

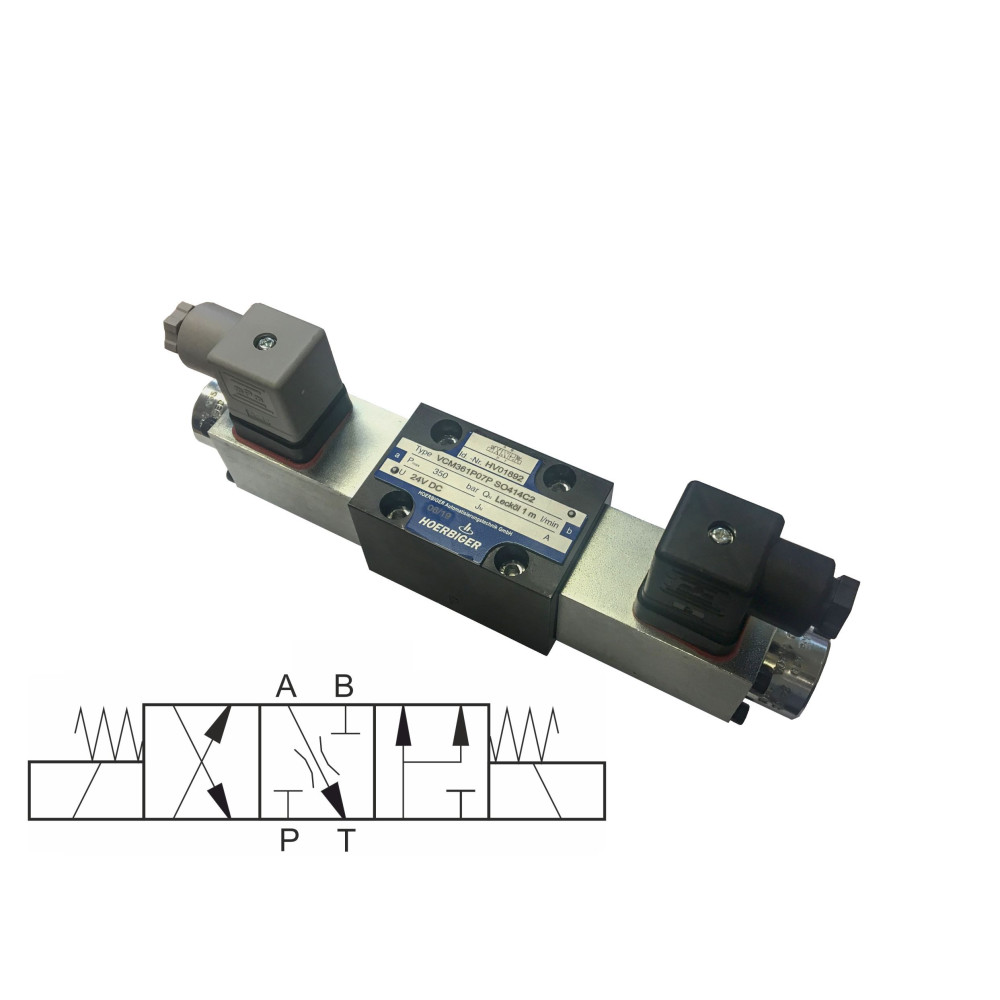

The slide valve switchboard VCM 361 P 07 PSO 414 C2 is made especially for bending and special applications with higher pressure. Gate valves type VCM361P07P SO414 C2 are two coil 4/3 switchboards, where on both sides there are coils used for seat valves. These hydraulic valves are most often found in TRUMPF and AMADA press brakes.
HV01892
1 Item

Data sheet

Mass
2.3 kg
Designation
VCM 361 P 07 P SO 414 C2
Connection

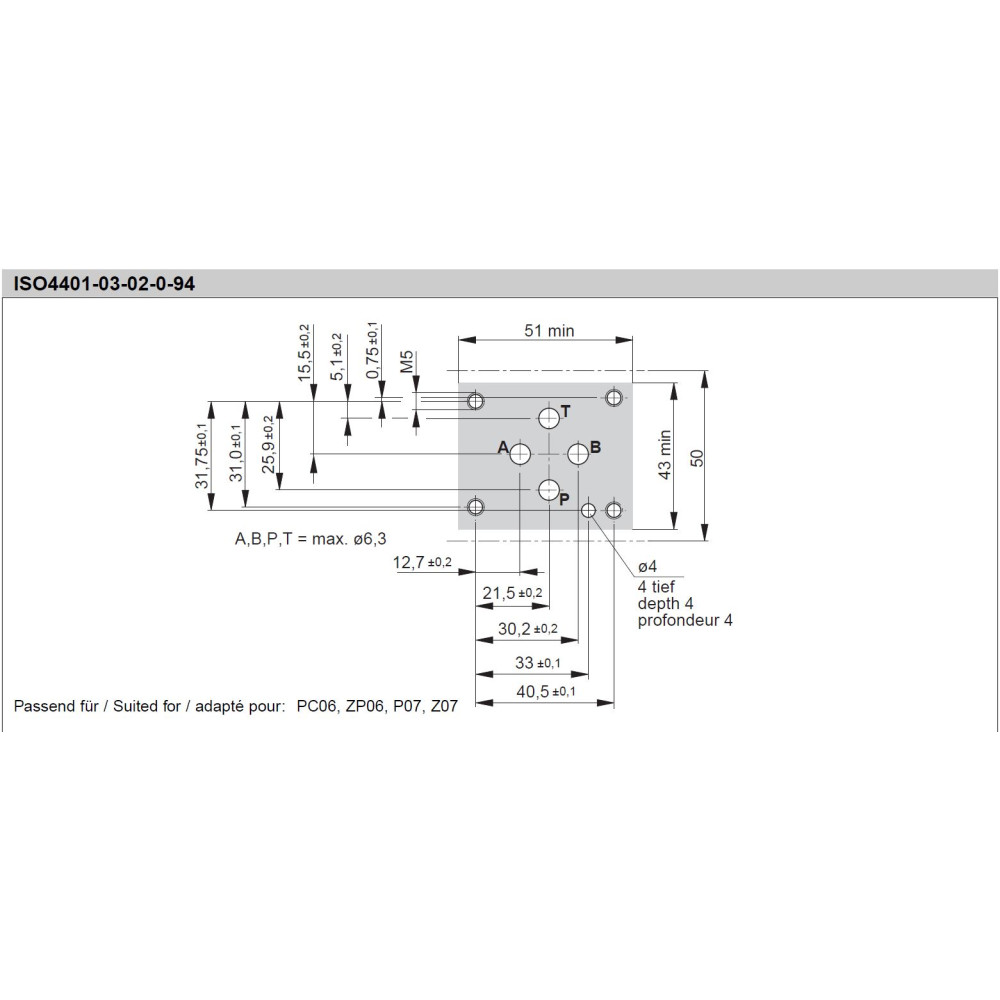

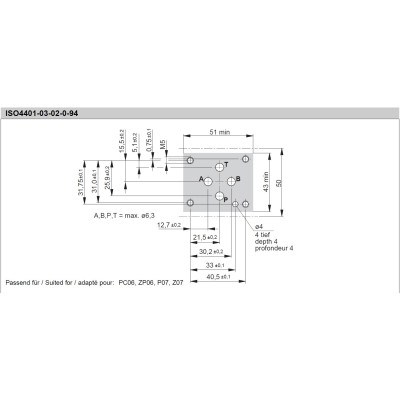

NG06 (CETOP 03)
Reimbursement
SCM361P06P SO414
Maximum working pressure (bar)
350.0 bar
Tension
24 V DC
Security
IP65
Maximum flow
1.0 l/min
Abbreviated name
VCM361P07P SO414 C2
New
