SAM220PC06PG SO802 (C2)
SAM220PC06PG SO802 (C2) Directly controlled hydraulic slide valve with position sensing
    SAM220PC06PG SO802 (C2)
    SAM220PC06PG SO802 (C2) Directly controlled hydraulic slide valve with position sensing

SAM220PC06PG SO802 (C2) Directly controlled hydraulic slide valve with position sensing

Voltage: 24 V DC
Flow: 60 l / min
Maximum pressure: 320 bar
11,667 Kč tax excl.

14,117 Kč tax incl.

Quantity

Description

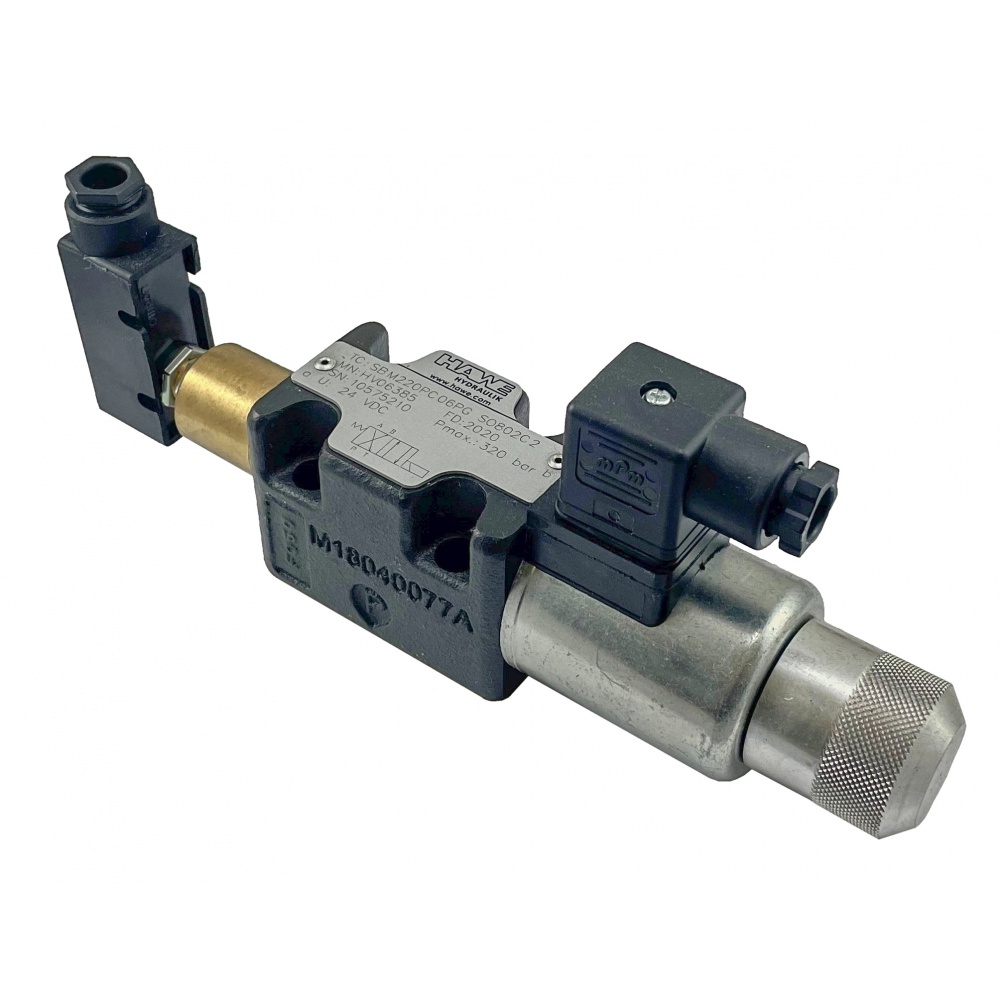

HOERBIGER - HAWE slide valve: SAM 220 PC 06 PGSO 802 (C2) is equipped with a special feedback function for the slide position control unit. The gate valves type SAM220PC06PG SO802 (C2) are one coil 4/2 switchboards, where on one side there is a control coil and on the other side there is an inductive sensor, which after moving the slide sends a signal to the control system that the slide was really moved. This is the so-called security element. These hydraulic valves are most often found in TRUMPF and AMADA press brakes for opening the suction flaps at rapid traverse.


Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Refresh the code


Data sheet

Reference
HV06178
Mass
1.6 kg
Designation
SAM220PC06PG SO802 (C2)
Connection

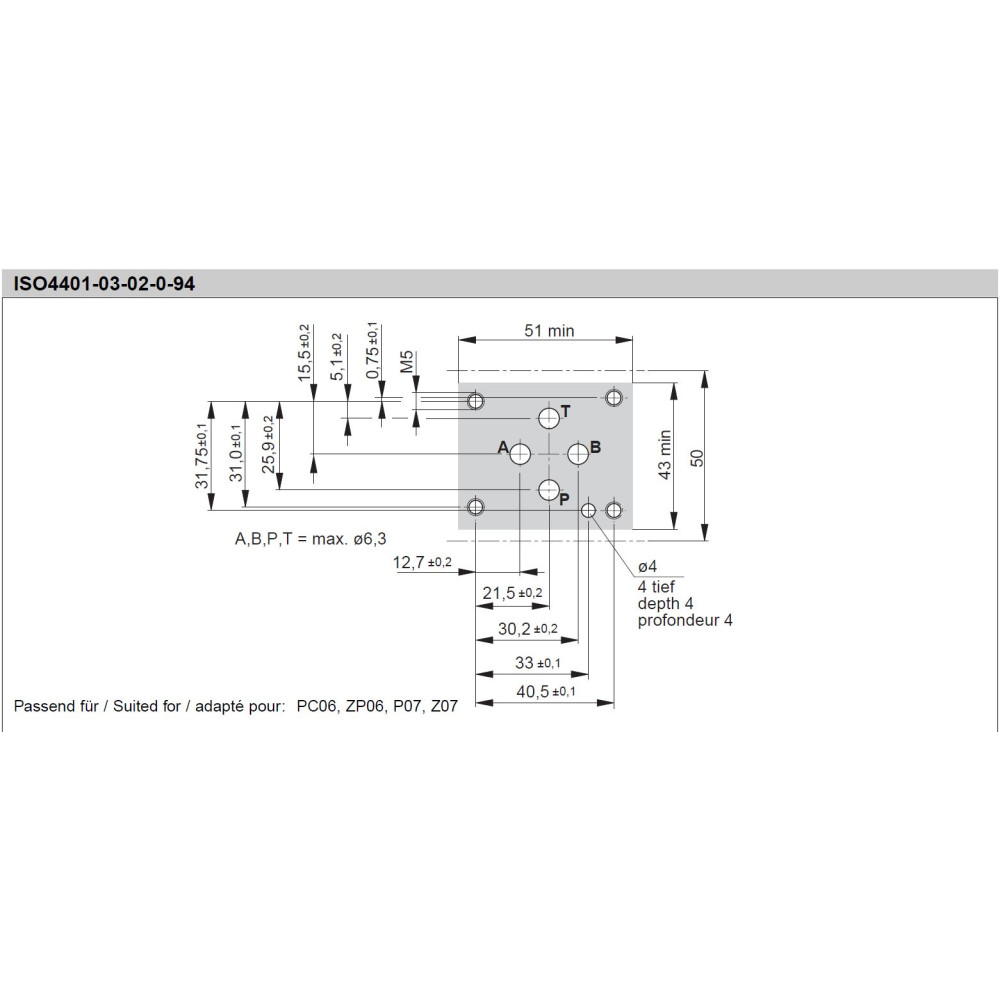

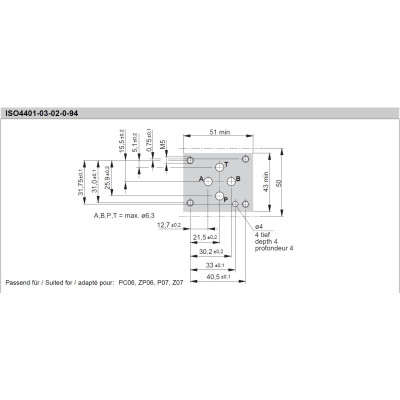

NG06 (CETOP 03)
Maximum working pressure (bar)
320.0 bar
Tension
24 V DC
Security
IP65
