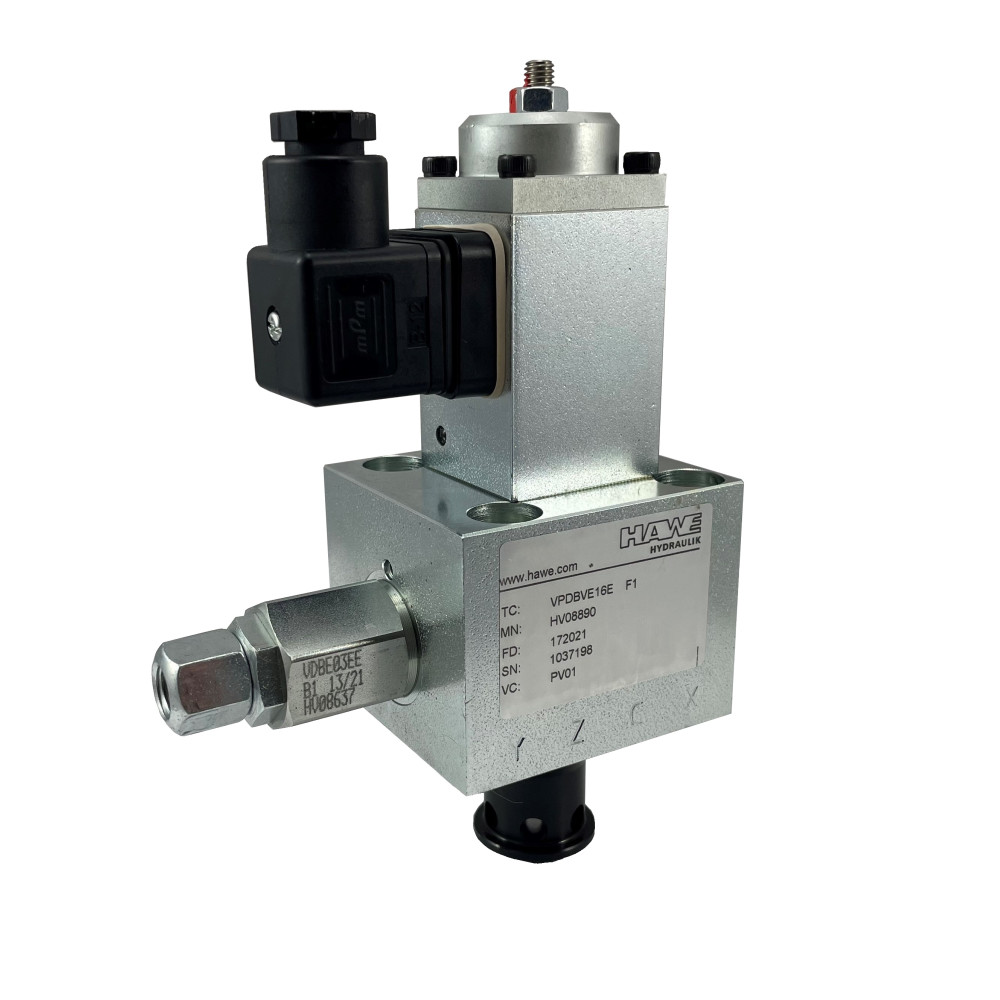

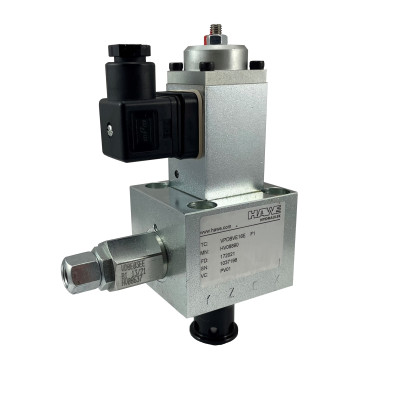

VPDBVE16E S1017 (C1) Proportional pressure valve HOERBIGER HAWE, 20-350 bar, 150 l/min

HV08710
Qje8-150 l/min
Pje 20-350 bar
Ije50-680mA
Uje 1.8-24 V DC
VPDBVE16E S1017 (C1)
28,854 Kč bez DPH
34,913 Kč Tax included

23,804 Kč ks

Quantity
On order 3-4 týdny

Compare
Proportional valves VPDB VE 16 E from the German manufacturer HOERBIGER are intended for hydraulic systems where the highest requirements are imposed. Enables smooth and precise pressure adjustment. It is easily adjustable with a control signal, a potentiometer, or via a relay. This servo valve is most often found in TRUMPF press brakes.
The package also includes a cartridge logic valve CVSE16C08 / HV08899.
VPDBVE16E S1017 (C1)

Inquiry


Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Refresh the code

HV08710

Data sheet

Mass
2.0 kg
Designation
VPDBVE16E S1017 (C1)
Maximum pressure
350.0 bar
Control signal
1.8-24V DC / 50-680mA
Flow regulation
It doesn't have
Pressure regulation
20-350 bar
Maximum flow
150.0 l/min
Minimum flow
8.0 l/min
Abbreviated name
VPDBVE16E S1017 (C1)
New
