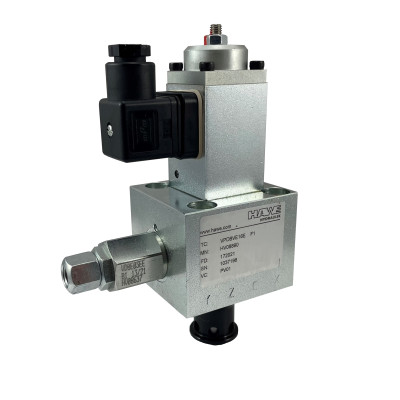

VPDBVE16E - Proportional pressure valve for pressure control P

HV08890
Q je 8-150 l / min
P je 20-350 bar
I je 50-680 mA
U je 1.8-24 V DC
21,853 Kč bez DPH
26,443 Kč Tax included

23,994 Kč ks

Quantity
In Stock 7 ks

Compare
Proportional valves VPDB VE 16 E from the German manufacturer HOERBIGER, are designed for hydraulic systems where the highest requirements are placed. Allows smooth and accurate pressure adjustment. It is easily adjustable by control signal, potentiometer or via relay. This servo valve is most common in TRUMPF press brakes. The package also includes a cartridge logic valve CVSE16C08 / HV08899.
HV08890
7 Items

Data sheet

Mass
2.0 kg
Designation
VPDB VE 16 E / HV08890
Maximum pressure
350.0 bar
Control signal
1.8-24V DC / 50-680mA
Flow regulation
It doesn't have
Pressure regulation
20-350 bar
Maximum flow
150.0 l/min
Minimum flow
8.0 l/min
Abbreviated name
VPDBVE16E (F1) / HV08890
New
