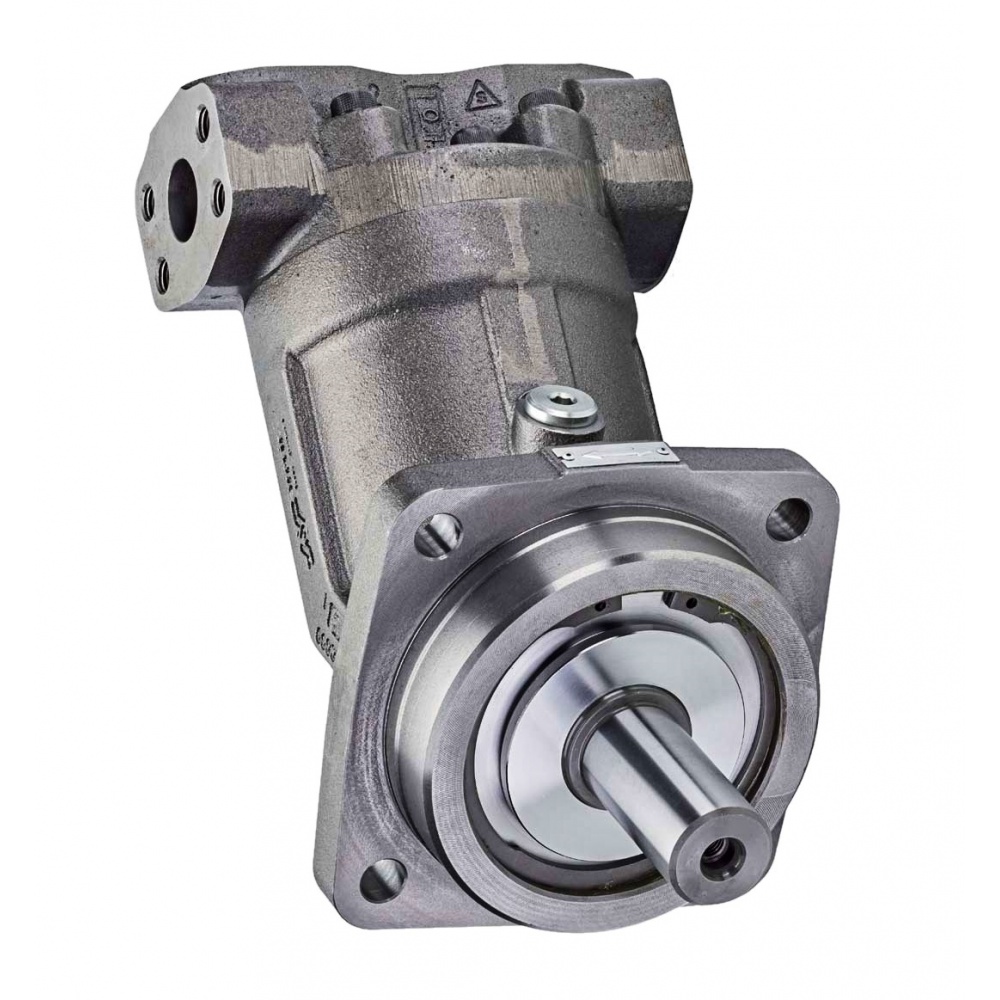

SH11C P 063 ME OC CAW FP2 SX V XXXX 000 XX XX XX Axial piston pump DANA BREVINI
B2031082
Geometric volume: 63.26 cc/rev
Maximum pressure: 430 bar
SH11C P 063 ME OC CAW FP2 SX V XXXX 000 XX XX XX
B2031082
Maximum pressure: 430 bar
SH11C P 063 ME OC CAW FP2 SX V XXXX 000 XX XX XX
B2031082
The SH11C pump is a family of fixed stroke, bent axis piston pumps for both open and closed circuit operation. Proven design incorporating a lens-shaped valve plate, high quality components and manufacturing techniques enable the SH11C motors to deliver continuous performance up to 430 bar [6235 psi] and peak performance of 480 bar [6960 psi]. Fully laboratory tested and field proven, these units provide maximum efficiency and long life. Heavy duty bearings allow for high radial and axial loads. The versatile design includes a variety of port, shaft end and valve sets to suit the SH11C motors for any application, both industrial and mobile. SH11C hydraulic motors are available in both ISO and SAE versions.
SH11C P 063 ME OC CAW FP2 SX V XXXX 000 XX XX XX
B2031082
SH11C P 063 ME OC CAW FP2 SX V XXXX 000 XX XX XX
B2031082
B2031082
Data sheet
- Mass
- 0.0 kg
- Designation
- Installation center
- 0.0 mm
- Geometric volume of the pump
- Pump flow at 1500 rpm
- 0.0 l/min
- Maximum speed
- 3750.0 rpm
- Continuous working pressure
- 430.0 bar
- Peak pressure
- 480.0 bar
- Abbreviated name
