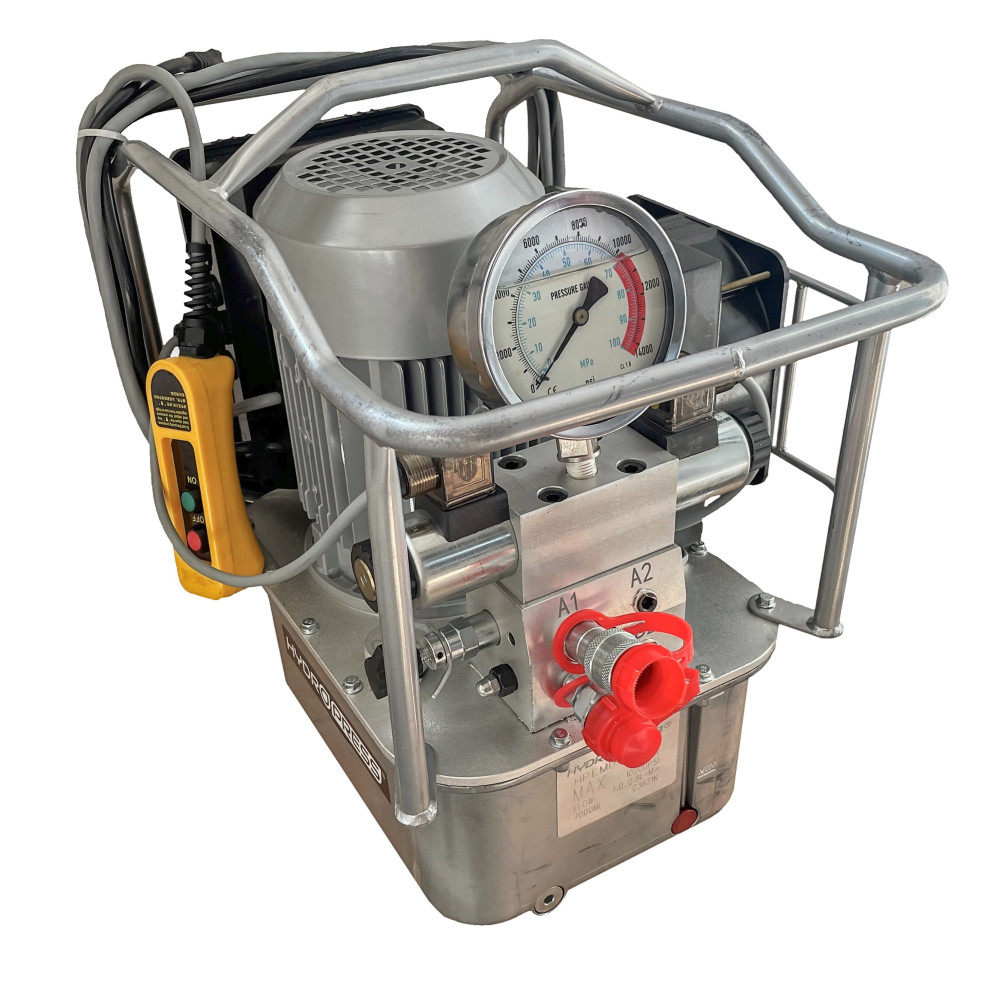

HPEMP-204 two-stage hydraulic unit with electric motor 230 V AC, 700 bar
2997
First stage flow rate: 1.1 l/min / 700 bar
Second stage flow rate: 6 l/min / 65 bar
For single acting cylinder control
Pmax: 700 bar
Tank: aluminum, 8 liters
220 V AC
HPEMP-204
Second stage flow rate: 6 l/min / 65 bar
For single acting cylinder control
Pmax: 700 bar
Tank: aluminum, 8 liters
220 V AC
HPEMP-204
Hydraulic aggregate with cooling for single-acting cylinder control with remote control by buttons. The drive unit is anchored in the protective frame.
2997
1 Item
Data sheet
- Mass
- 36.5 kg
- Designation
- HPEMP-204
- Maximum working pressure (bar)
- 700.0 bar
- Pump
- Pistons
- Tank
- 8.0 liters
- Engine
- 230 V AC
- First stage flow of the pump
- 1.1 l/min
- Second stage pump flow
- 6.0 l/min
- Abbreviated name
- HPEMP-204
New
First stage flow rate: 1.1 l/min / 700 bar
Second stage flow rate: 6 l/min / 65 bar
For single acting cylinder control
Pmax: 700 bar
Tank: aluminum, 8 liters
220 V AC
HPEMP-204
Second stage flow rate: 6 l/min / 65 bar
For single acting cylinder control
Pmax: 700 bar
Tank: aluminum, 8 liters
220 V AC
HPEMP-204
