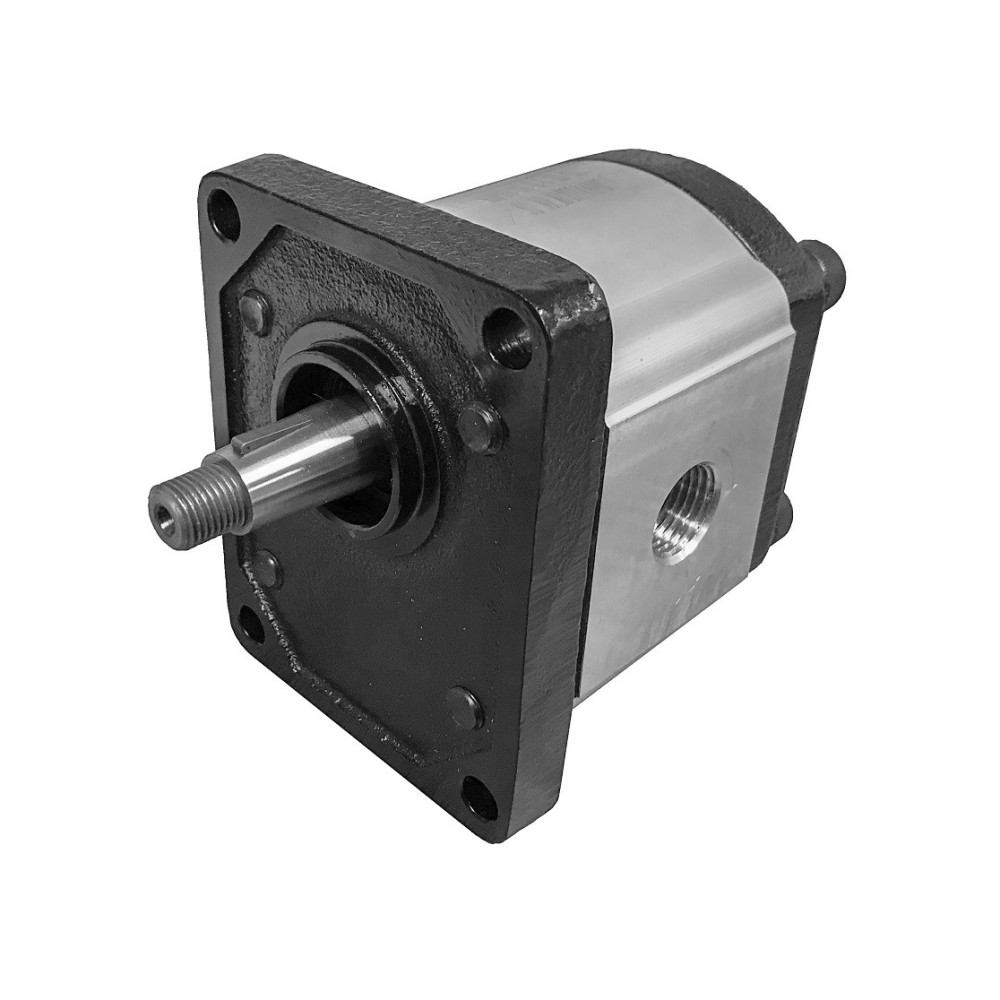

KHP20-S0-D-12-Z0-GL1 external gear hydraulic gear pump, 270 bar, 12 cc/rev

61
Geometric volume: 12 cc/rev
Maximum pressure: 270 bar
Direction of rotation: clockwise
Pump replacement: ALP2-D-16-FG, GHP2-D-16-FG
2,544 Kč bez DPH
3,078 Kč Tax included

3,078 Kč ks

Quantity
In Stock 17 ks

Compare
Hydraulic gear pumps with external gearing are used for pressurized delivery of oil medium to the hydraulic system, or simply pumping and filtering oil. The hydraulic gear pump can be in different sizes with the required oil flow of 3-30 ccm/rev, according to the customer's wishes. These hydraulic pumps with external gearing work with a continuous pressure of up to 270 bar.
Replacement of pumps:
ALP2-D-16-FG
GHP2-D-16-FG
61
17 Items

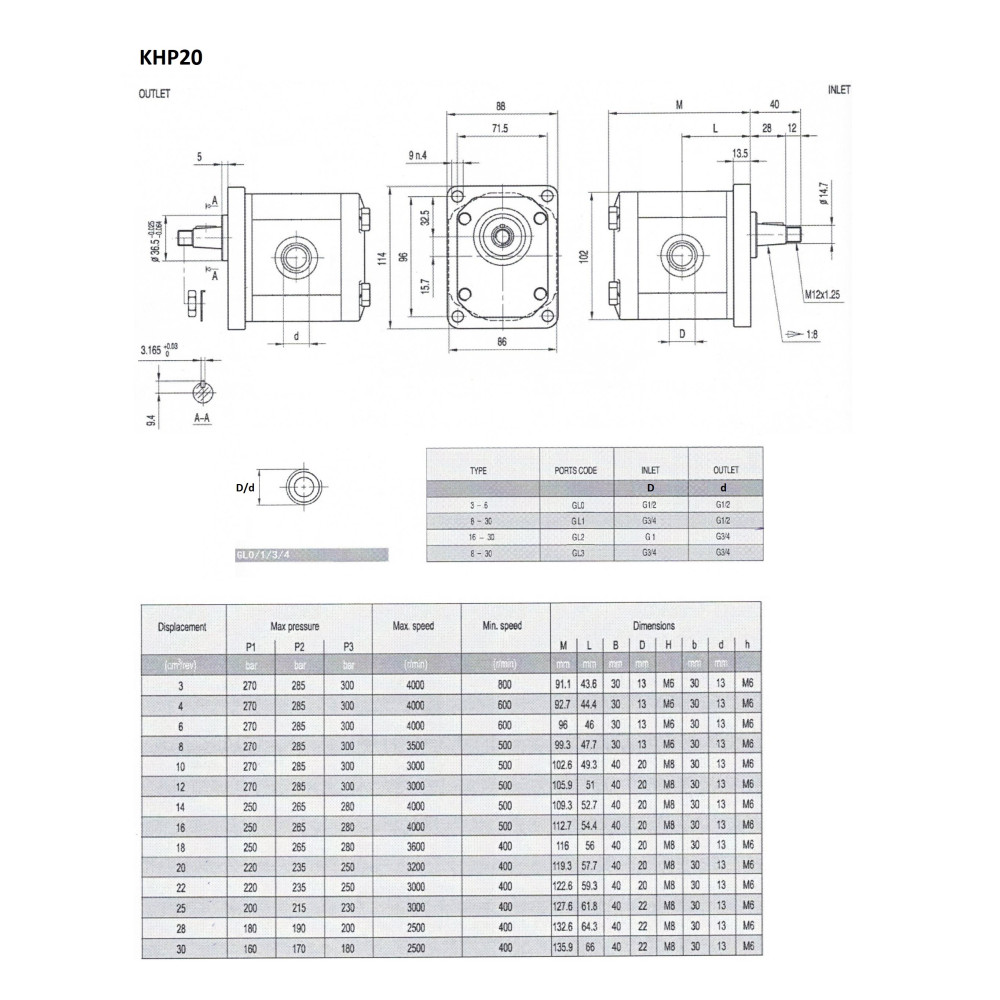

Data sheet

Mass
2.8 kg
Designation
KHP20-S0-D-12-Z0-GL1
Shaft end
Cone 1:8 / tongue 3.15 / terminated with M12x1.25 nut
Installation center
36.5 mm
Mounting bolt spacing
96x71.5 mm
Geometric volume of the pump
12.0 cc/rev
Pump flow at 1500 rpm
18.0 l/min
Maximum speed
3000.0 rpm
Continuous working pressure
270.0 bar
Peak pressure
300.0 bar
Reimbursement
OT200, XV2P, ALP2-D-16-FG, GHP2-D-16-FG
Suction port - connection
G 3/4"
Pressure port - connection
G 1/2"
Direction of rotation
Right-handed
Abbreviated name
KHP20-S0-D-12-Z0-GL1
New
