PIH430PC06N13 proportional valve HAWE, HOERBIGER TRUMPF, 0-13 l/min, 12 V DC

HV08425
Qje0-13 l/min
Pje 350 bar
Ije0-1600mA
Uje 0-12 V DC
PIH 430 PC 06 N 13
HV08425
HAWE HOERBIGER
TRUMP
52,331 Kč bez DPH
63,321 Kč Tax included

46,817 Kč ks

Quantity
On order 6-7 týdnů

Compare

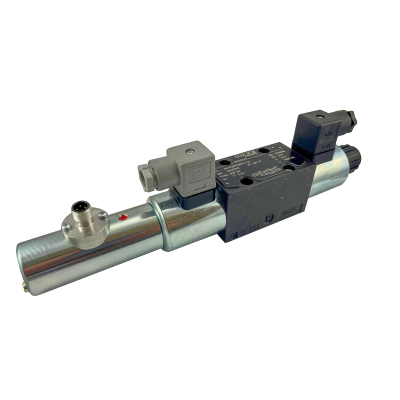

The proportional control valve PIH 430 PC 06 N 13 allows you to control the oil flow and thus facilitate smooth and precise control. Their main features are high repeatability, high accuracy and low noise. When using proportional valves with valve position sensing, we achieve significantly lower hysteresis and higher valve dynamics. This servo valve is most often found in TRUMPF press brakes.
HAWE HOERBIGER
PIH430PC06N13
HV08425

Inquiry


Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Choose file  File types: png|jpg|jpeg|pdf|doc|docx|xls|xlsx
Refresh the code

HV08425

Data sheet

Mass
2.5 kg
Designation
PIH430PC06N13 HV08425
Maximum pressure
350.0 bar
Control signal
0-12V DC / 0-1600mA
Flow regulation
0-13 l/min
Pressure regulation
It doesn't have
Maximum flow
13.0 l/min
Abbreviated name
PIH430PC06N13 / HV08425
