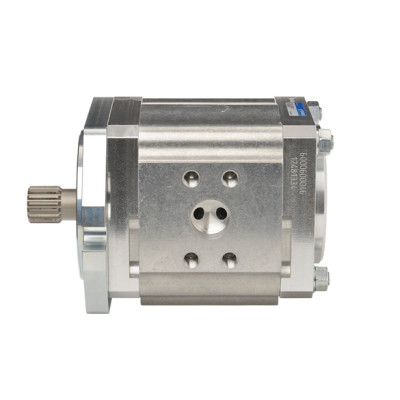

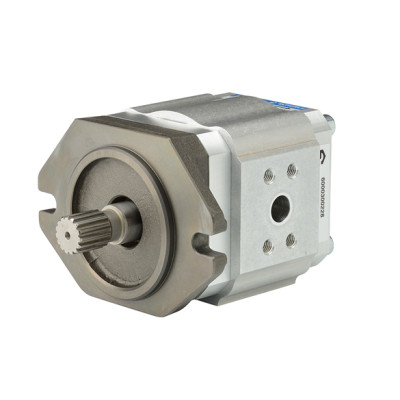

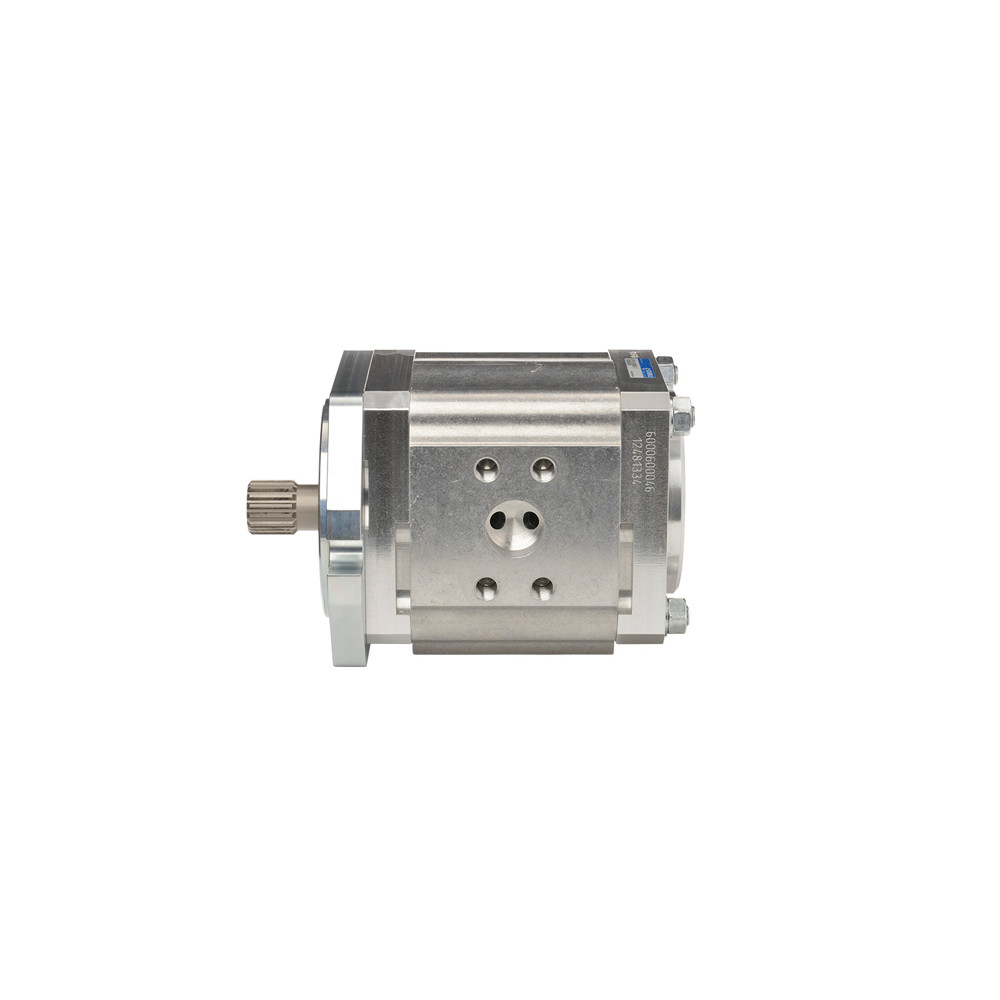

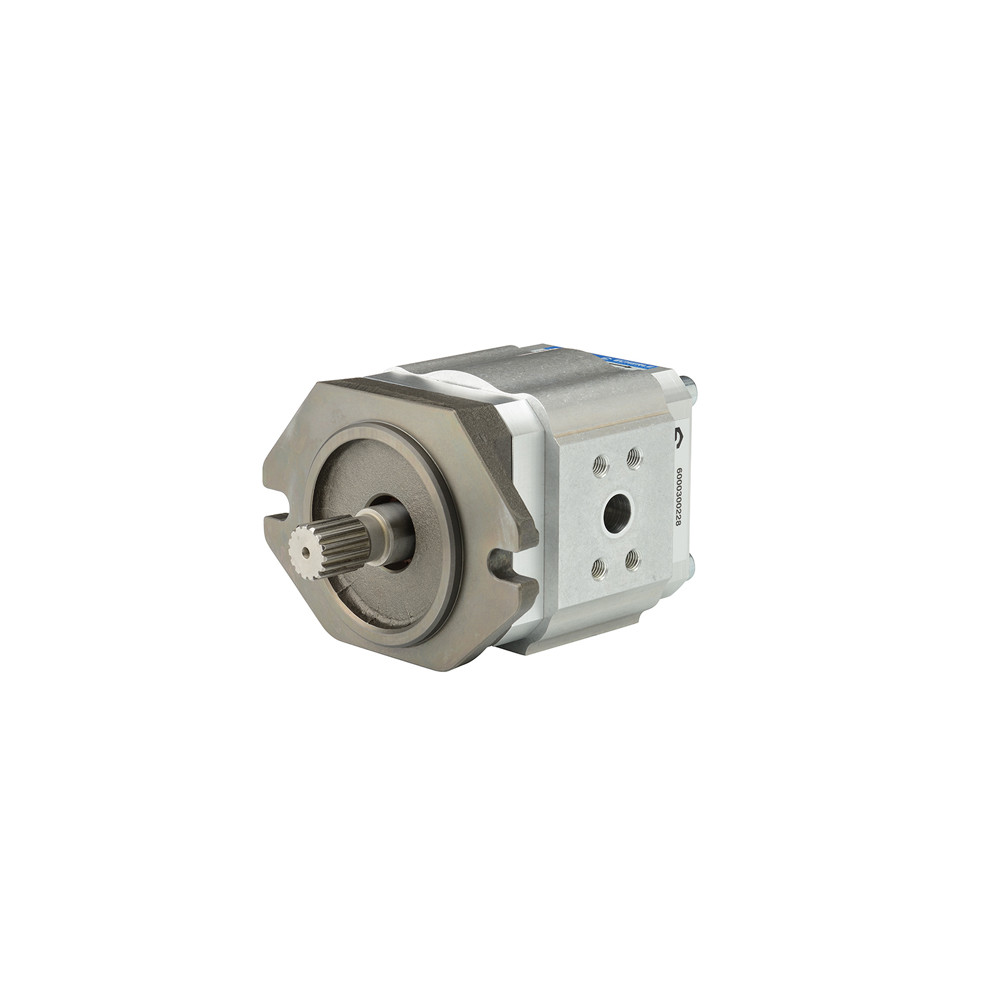

EIPC5-100RB23-1X - hydraulic gear pump ECKERLE with internal gearing size EIPC5
6000500005
Geometric volume: 100.5 ccm / rev - Maximum pressure: 250 bar - Direction of rotation: clockwise
The characteristic features of the EIPC5-100 RB 23-1X internal gear hydraulic pumps compared to the external gear hydraulic pumps are: Low noise, long service life and high pressures. They can be easily combined with multiple pumps in a row, we call them tandem pumps. The ECKERLE hydraulic pump with internal gearing is used mainly in heavy industry and wherever the emphasis is on higher pressures and long life, such as engineering, forklifts, servo variable speed drives, elevators, cranes, wind turbines and much more.
6000500005
Data sheet
- Mass
- 13.5 kg
- Designation
- EIPC5 - 100 RB 23 - 1X
- Shaft end
- Slotted - 12/24DP 30° 14T
- Installation center
- 127.0 mm
- Mounting bolt spacing
- 181 mm
- Geometric volume of the pump
- 100.5 cc/rev
- Pump flow at 1500 rpm
- 151.0 l/min
- Maximum speed
- 3000.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 280.0 bar
- Suction port - connection
- SAE 77.8x42.9mm / AFS 108 G2"
- Pressure port - connection
- SAE 66.7x31.8mm / AFS 404 G-100 G1 1/4"
- Direction of rotation
- Right-handed
- Abbreviated name
- EIPC5-100RB23-1X
New
Geometric volume: 100.5 ccm / rev - Maximum pressure: 250 bar - Direction of rotation: clockwise
