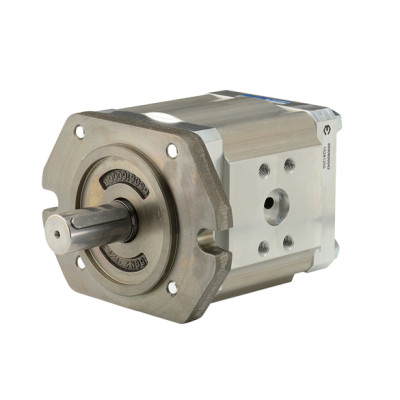

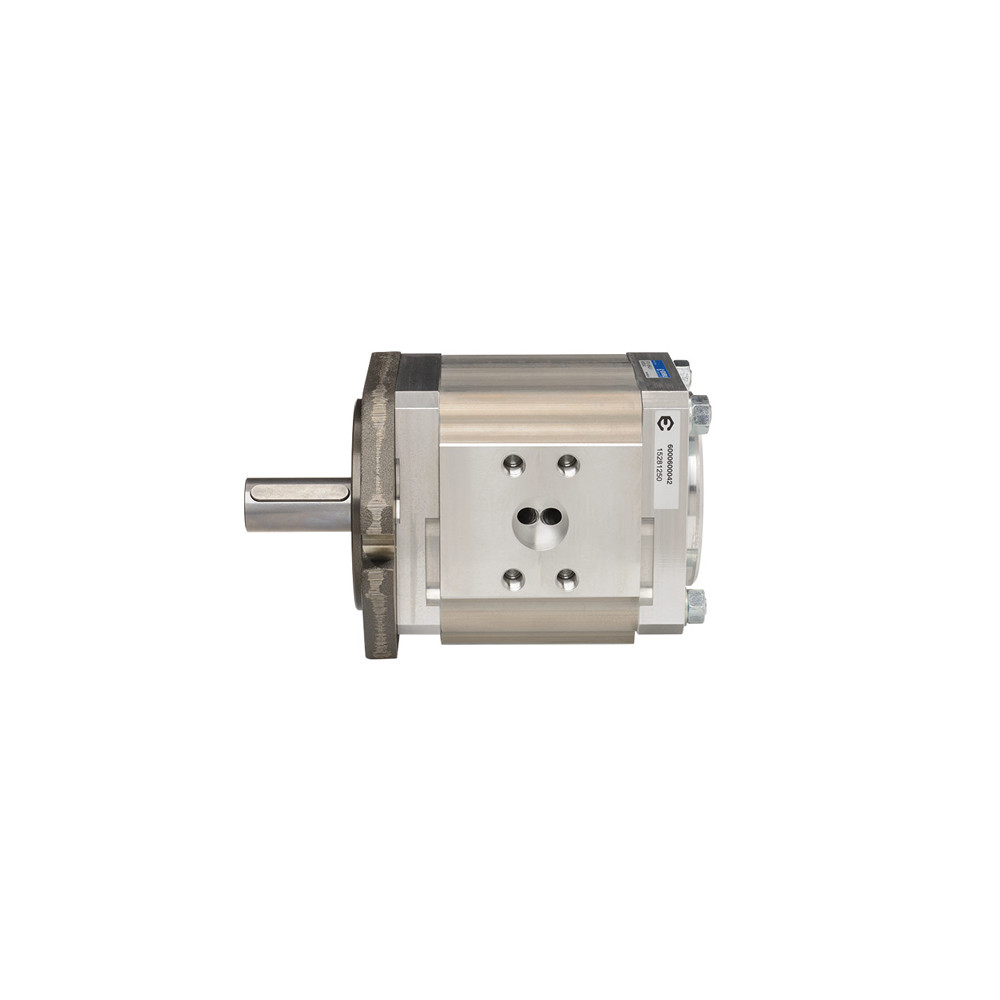

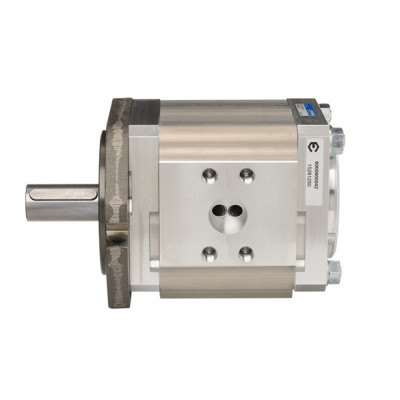

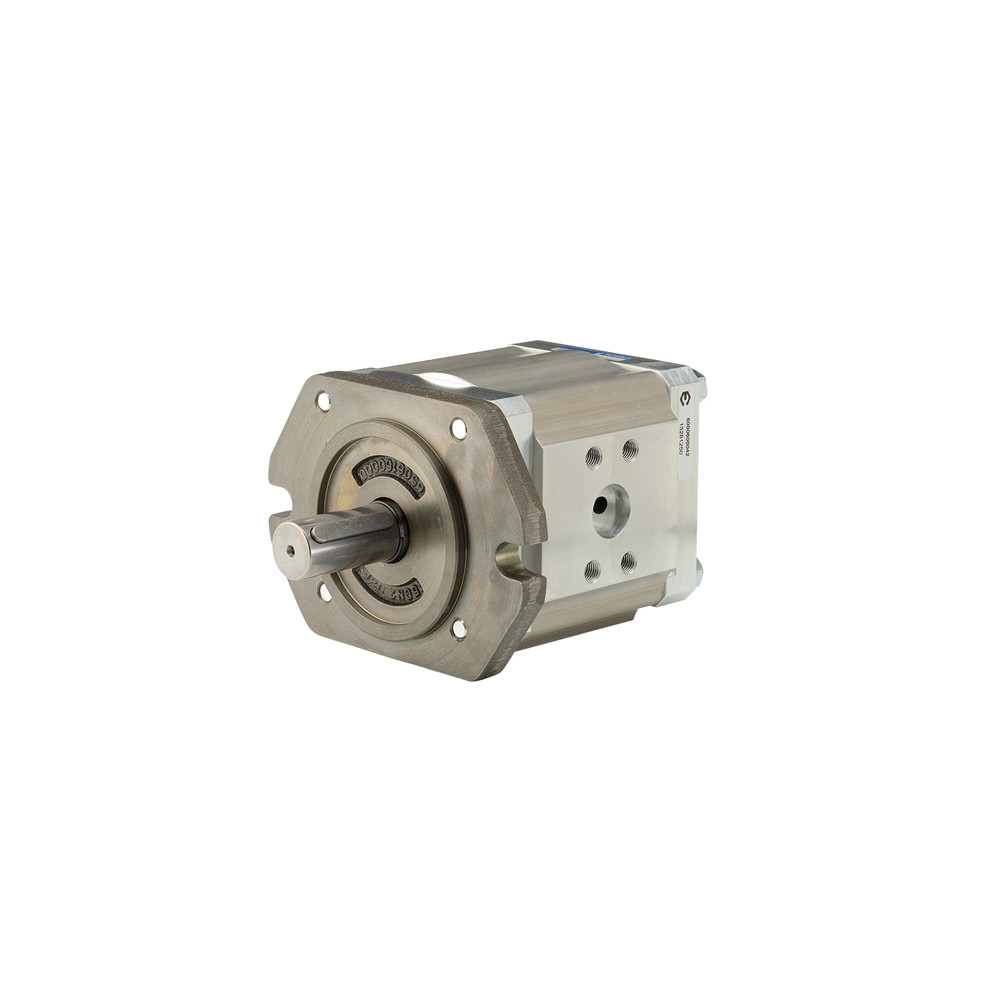

EIPC6-160RA23-1X - hydraulic gear pump ECKERLE with internal gearing size EIPC6
6000600042
Geometric volume: 160.1 ccm / rev - Maximum pressure: 250 bar - Direction of rotation: clockwise
The characteristics of the EIPC6 - 160 RA 23 - 1X internal gear hydraulic pumps compared to the external gear hydraulic pumps are: Low noise, long service life and high pressures. They can be easily combined with multiple pumps in a row, we call them tandem pumps. The ECKERLE hydraulic pump with internal gearing is used mainly in heavy industry and wherever the emphasis is on higher pressures and long life, such as engineering, forklifts, servo variable speed drives, elevators, cranes, wind turbines and much more.
6000600042
Data sheet
- Mass
- 30.0 kg
- Designation
- EIPC6 - 160 RA 23 - 1X
- Shaft end
- Cylindrical - 40 mm / pen 12 mm
- Installation center
- 152.4 mm
- Mounting bolt spacing
- 228.6 mm
- Geometric volume of the pump
- 160.1 cc/rev
- Pump flow at 1500 rpm
- 240.0 l/min
- Maximum speed
- 2200.0 rpm
- Continuous working pressure
- 250.0 bar
- Peak pressure
- 300.0 bar
- Suction port - connection
- SAE 106.4x61.9 mm / AFS 112 (G3")
- Pressure port - connection
- SAE 79.4x36.5mm / AFS 405 G1 1/2"
- Direction of rotation
- Right-handed
- Abbreviated name
- EIPC6-160RA23-1X
New
Geometric volume: 160.1 ccm / rev - Maximum pressure: 250 bar - Direction of rotation: clockwise
